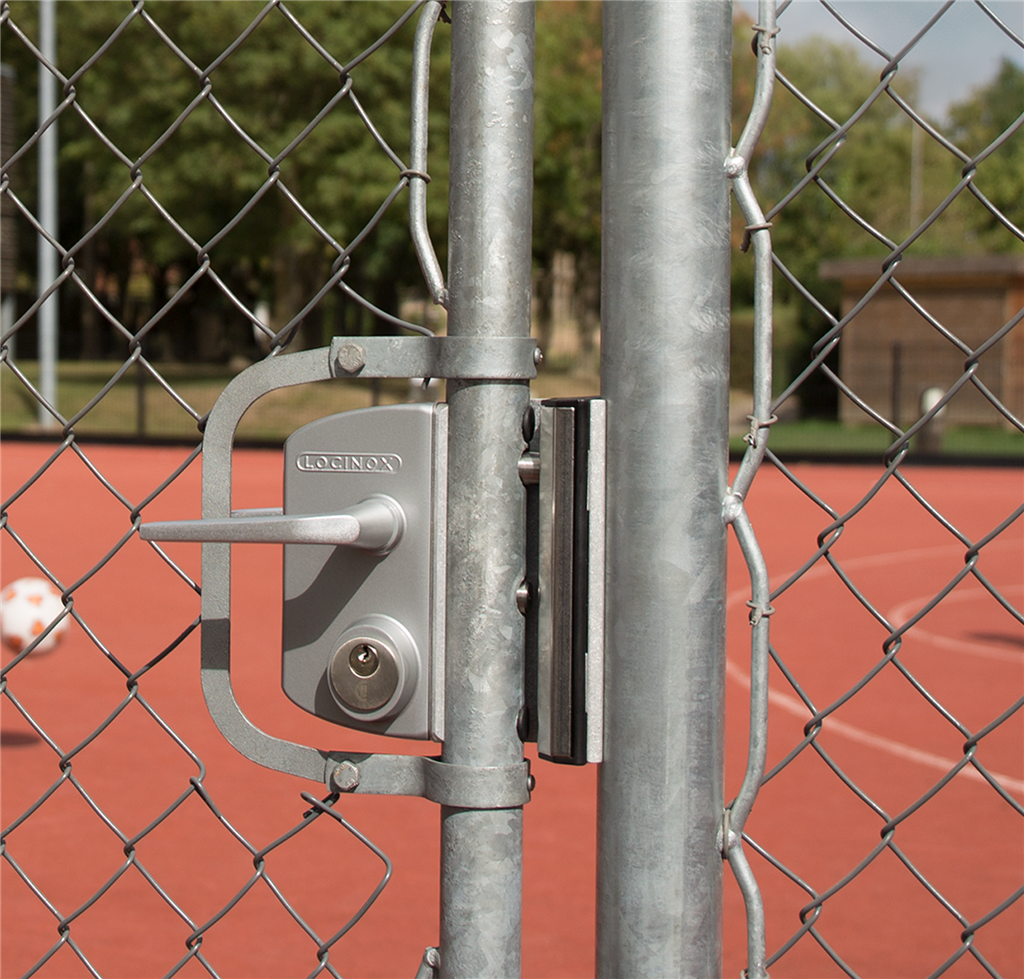

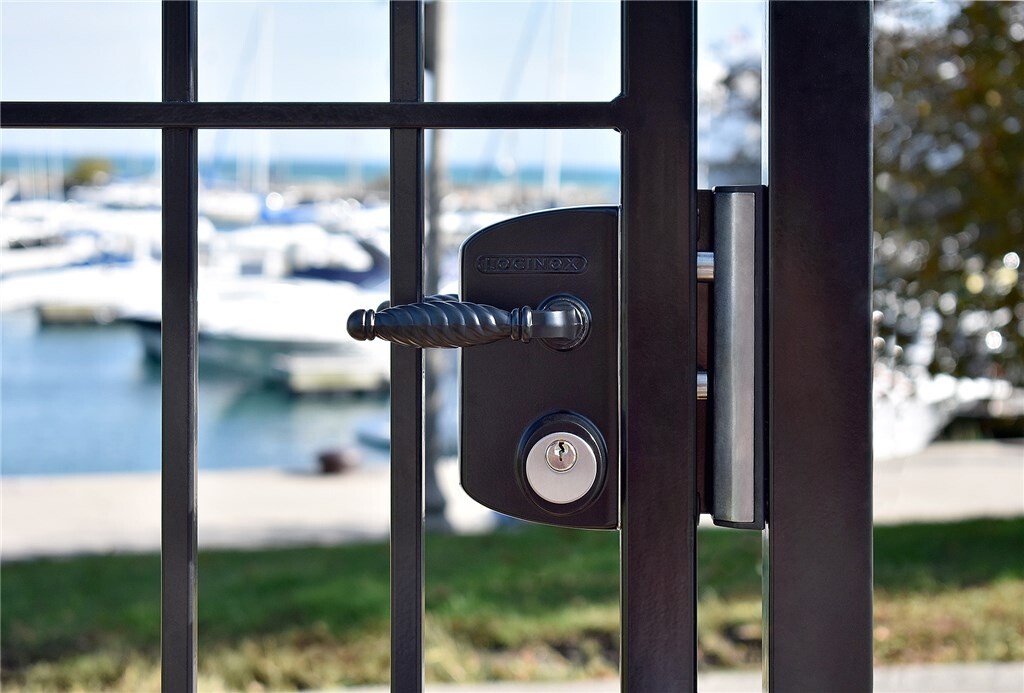

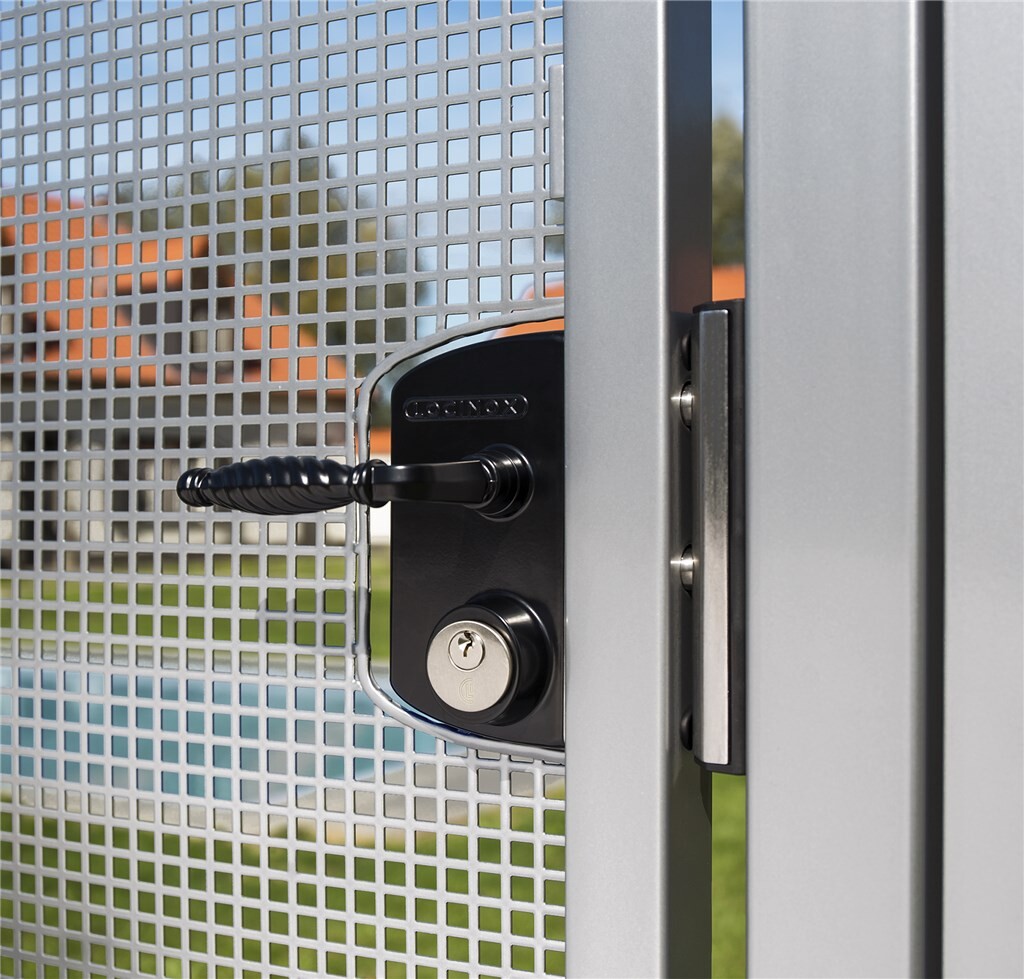

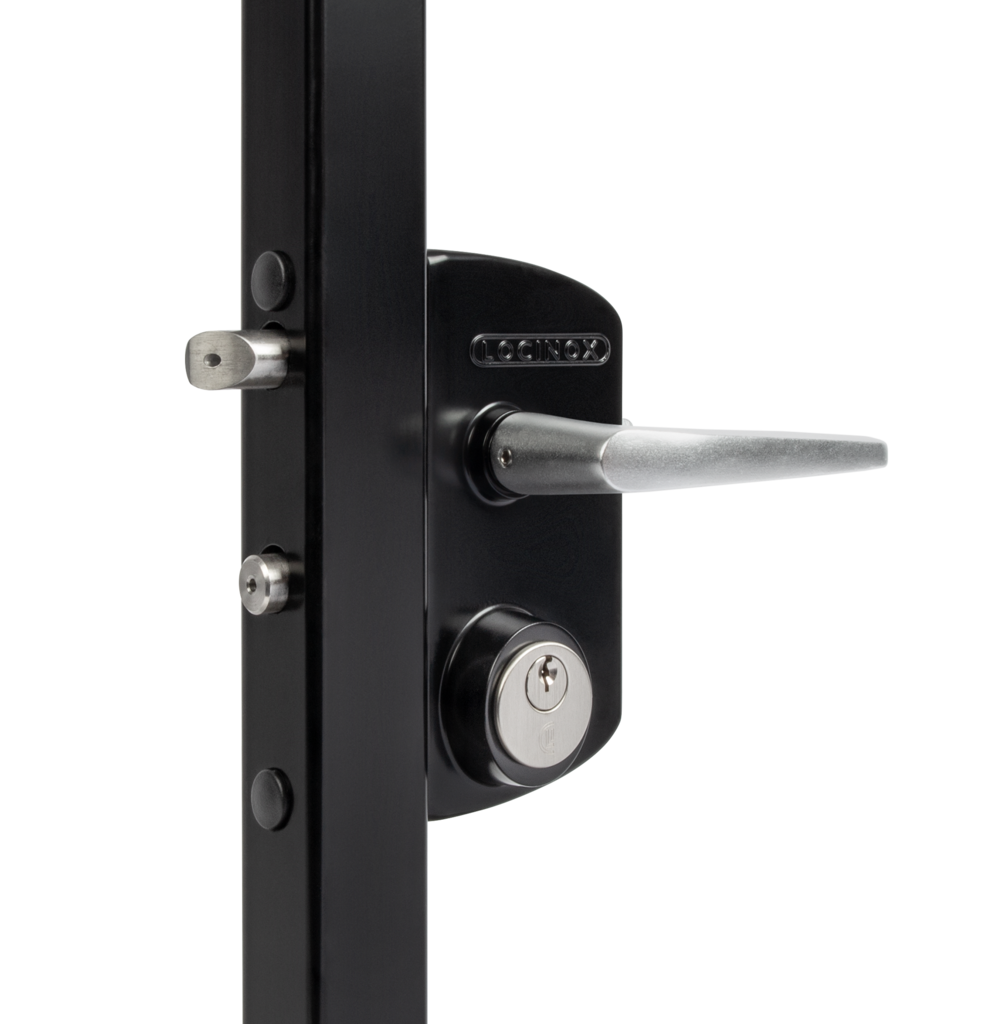

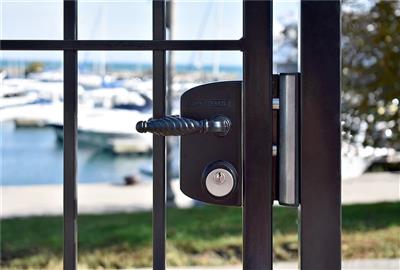

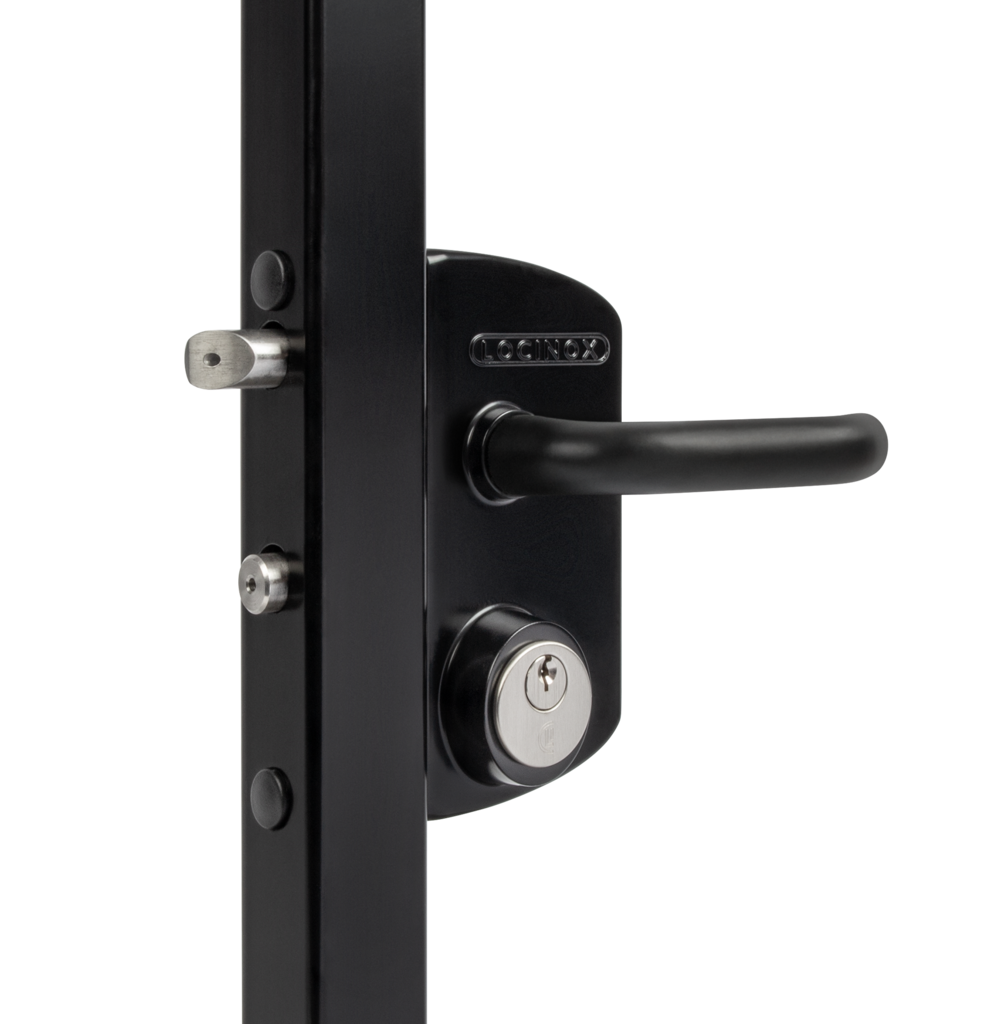

Surface mounted US Mortise cylinder gate lock (USA)

Surface mounted US Mortise cylinder gate lock (USA) - LUKY10J5LZCZM

Item No. P00015219 - LUKY10J5LZCZM

Excellent gate lock with aluminium housing and stainless steel mechanism. Specially developed to use with a standard 1-1/8" Mortise cylinder. Comes standard with 5pin keyed alike or keyed different (drilled 6pin). The latch and dead bolt have 3/8" continuous adjustment to allow perfect alignment of the locking mechanism. A stainless steel throw of 7/8" guarantees secure locking. Black lock standard provided with 3006B handle (black anodized aluminum), silver comes with aluminum handle (3006M).

Product specs

Variants

9005	SILV
Surface mounted US Mortise cylinder gate lock (USA) for Square 3/8" to 7/8" profiles in RAL 9005 - Jet black with 3006M - Aluminum handle pair & ZCZ - No cylinder	Surface mounted US Mortise cylinder gate lock (USA) for Square 3/8" to 7/8" profiles in SILV with 3006M - Aluminum handle pair & ZCZ - No cylinder

Continue shopping

Specifications
Drawings
Installation movies
Downloads

Specifications

Specifications	ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test Gate Lock with double cylinder dead bolt. Designed for 1-1/8" Mortise profile cylinder Fixing cylinder inch thread 1/4' Easy left or right changing of the self-latching daybolt Throw of the dead bolt, 7/8" in 1 turn of the key Key-operated self-latching bolt Adjustment of the bolts up to 3/8" continuous without removing the lock 4-hole mounting with two hex head socket screws Interchangeable with all Locinox surface mounted locks The lock box requires a 3-3/8" spacing to the first picket, fitting nicely into most gates
Available in following RAL-colors
Features
