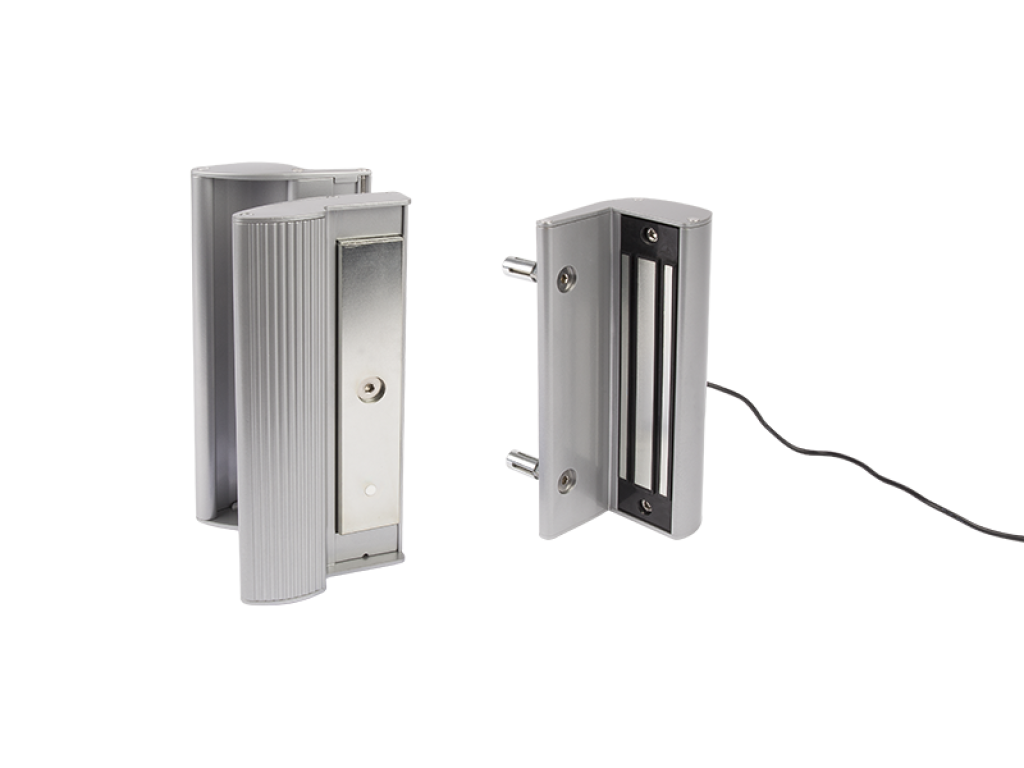

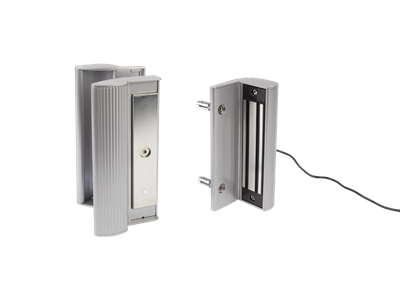

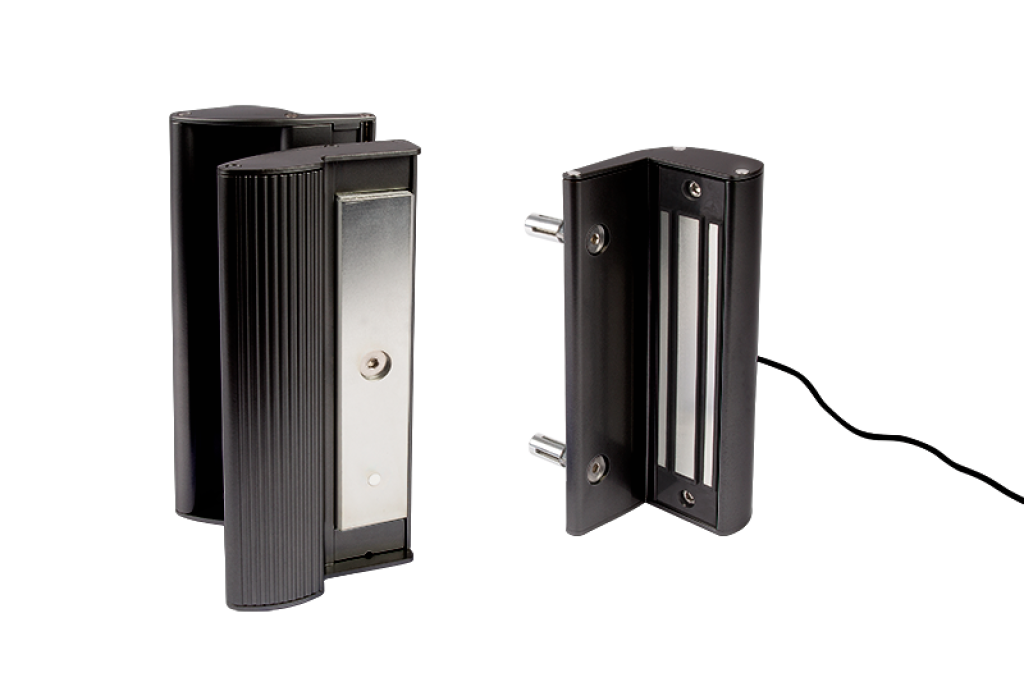

Surface mounted electromagnetic lock with integrated pull/push handles
Surface mounted electromagnetic lock with integrated pull/push handles
Surface mounted electromagnetic lock with integrated pull/push handles
Surface mounted electromagnetic lock with integrated pull/push handles

Surface mounted electromagnetic lock with integrated pull/push handles - MAG3000

Item No. P00007627 - MAG3000
Surface mounted electromagnetic lock with integrated pull/push handles - For square posts and gate profiles of 1-9/16" till 3-1/8", 660 lbs pulling force with 3006PULL handle - Various colors
9005SILV
P00007627-9005

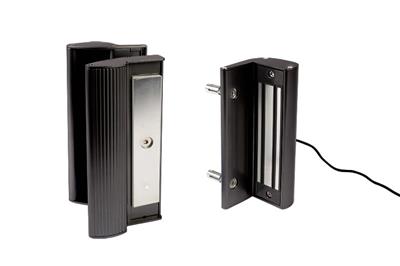

Surface mounted electromagnetic lock with integrated pull/push handles For square posts and gate profiles of 1-9/16" till 3-1/8", 660 lbs pulling force in RAL 9005 with 3006PULL handle.
P00007627-SILV

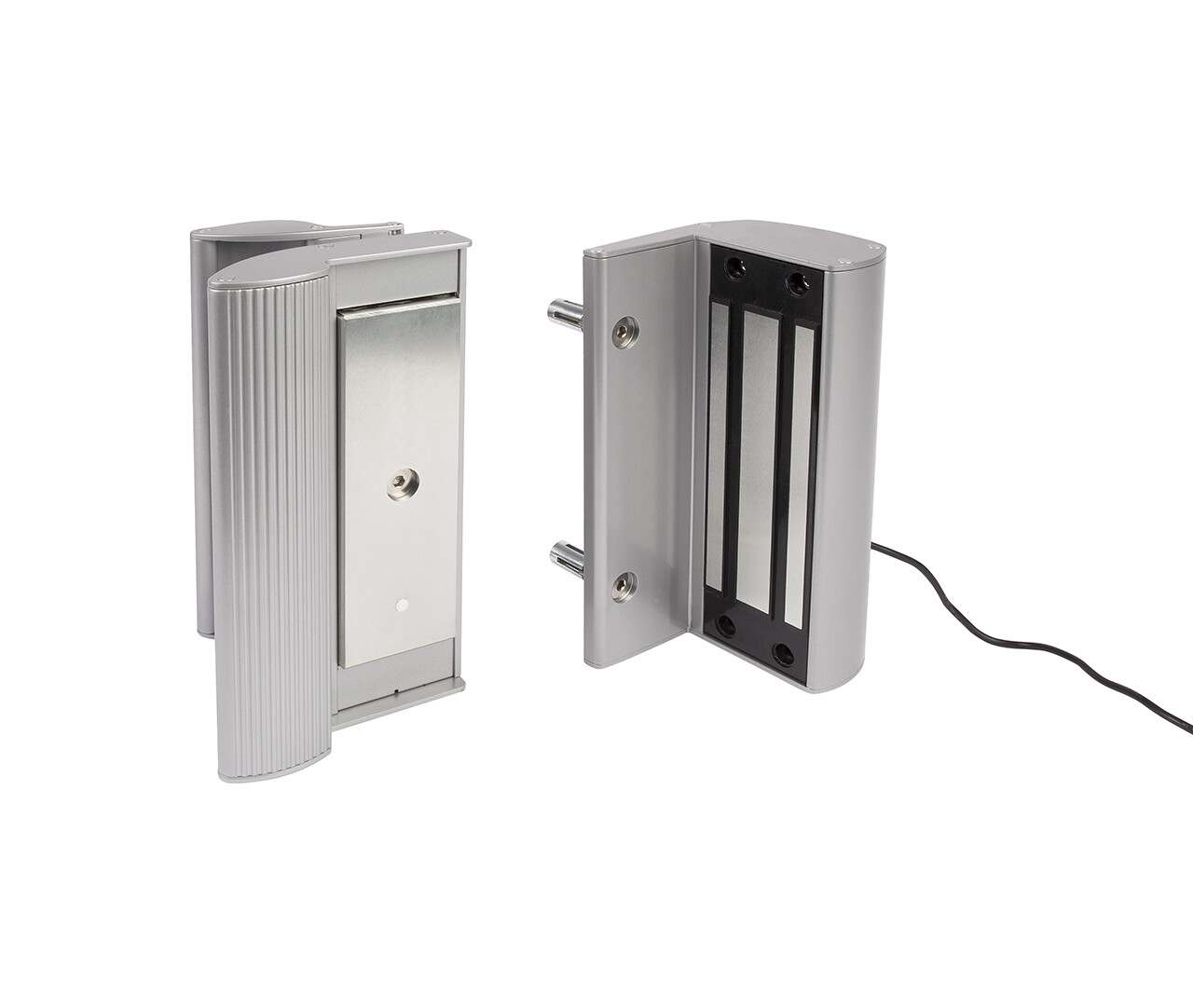

Surface mounted electromagnetic lock with integrated pull/push handles For square posts and gate profiles of 1-9/16" till 3-1/8", 660 lbs pulling force in Silver with 3006PULL handle.
Continue shopping
Specifications
Specifications
  • Guaranteed holding force tested on every magnetic lock
  • 500h salt spray resistant! SGS Certified (ISO 9227)
  • Tested according to ISO 9227
  • Special two-layer protective coating developed for outdoor use
  • Weatherproof aluminum housing designed for exterior use
  • Anti-residual magnetism kick-off system
  • Raised edge on the magnet housing makes it impossible to put a crowbar between the magnet and the armature plate
  • Fail open
  • Fast and easy fixing by means of 5 holes with Quick-Fix
  • Voltage: 12V / 24V DC
  • MAG3000: Minimal pulling force: 3000N (660 lbs)
  • MAG6000: Minimal pulling force: 6000N (1300 lbs)
  • Current MAG3000: 500 mA / 12 V or 250 mA / 24 V
  • Current MAG6000: 460 mA /12 V or 230 mA / 24 V
  • IP68 rated - Extremely resistant to water and dust
Available in following RAL-colors
Features

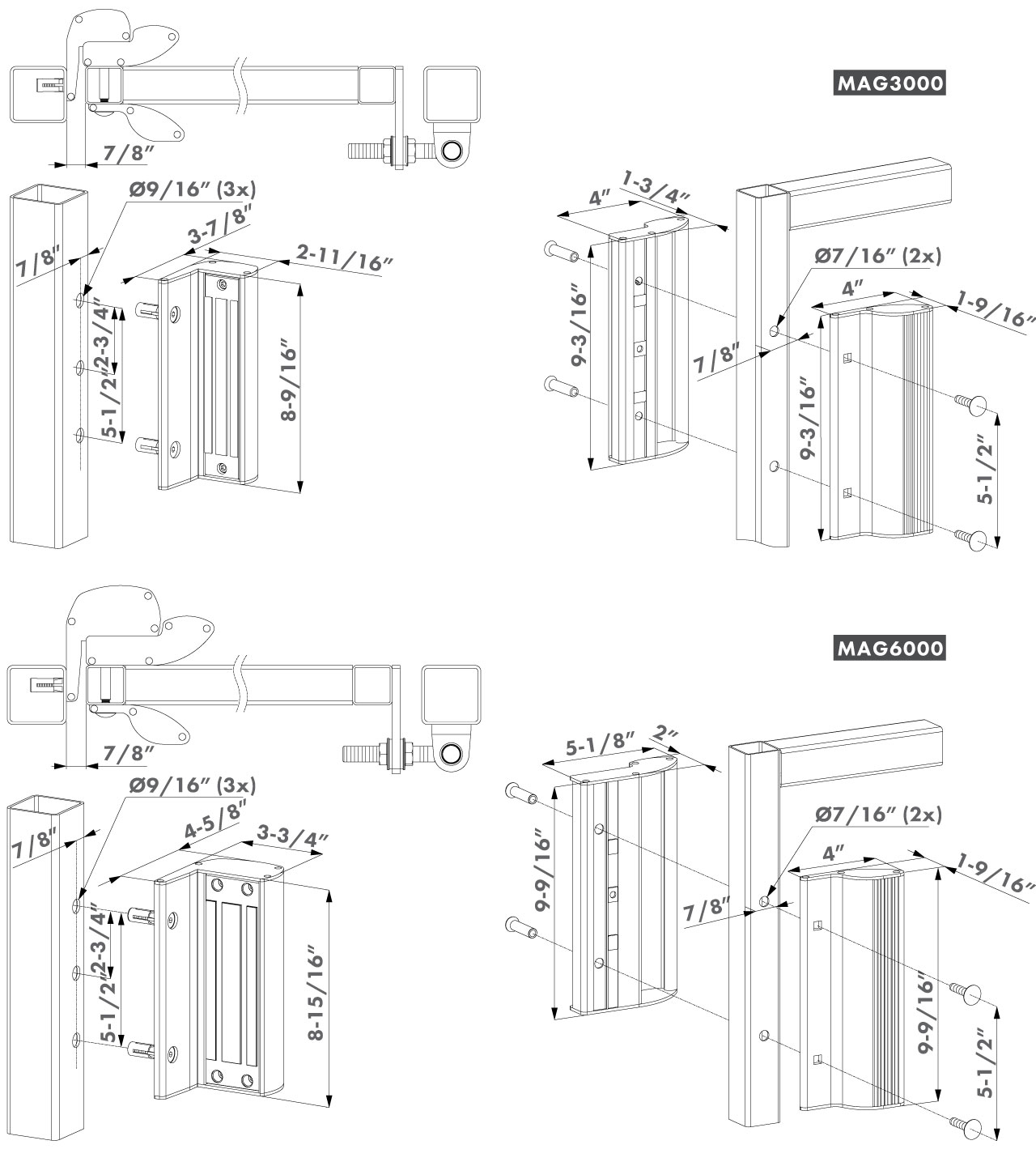

Drawings
