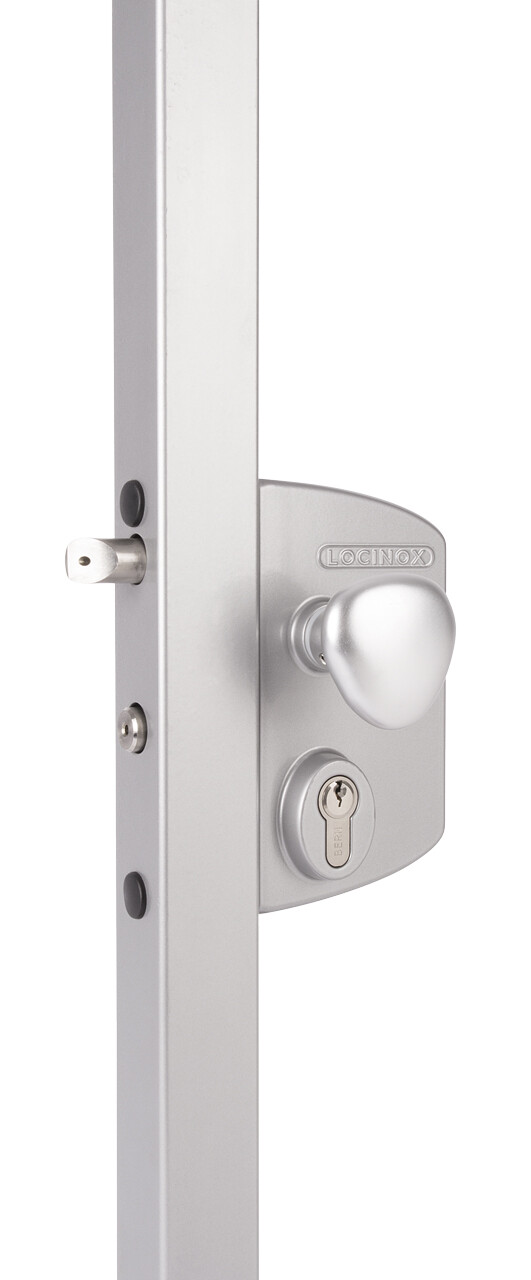

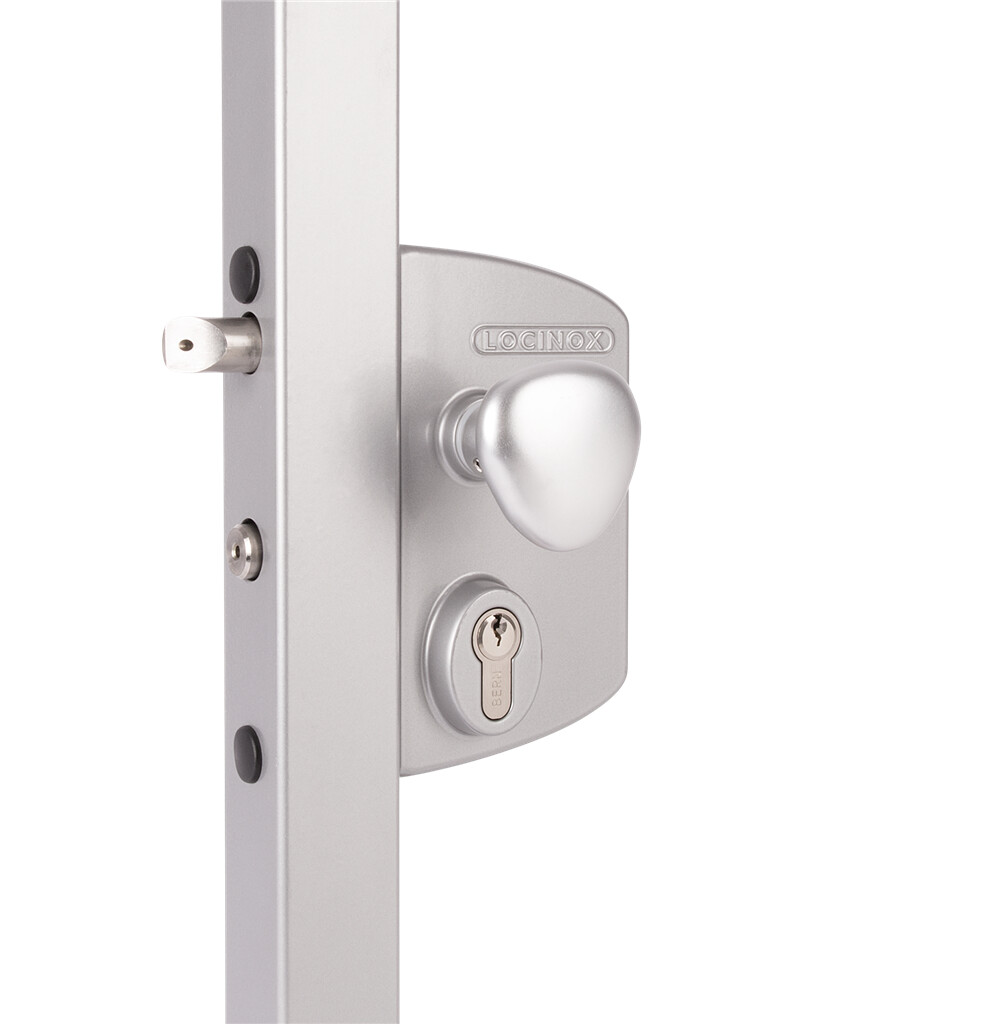

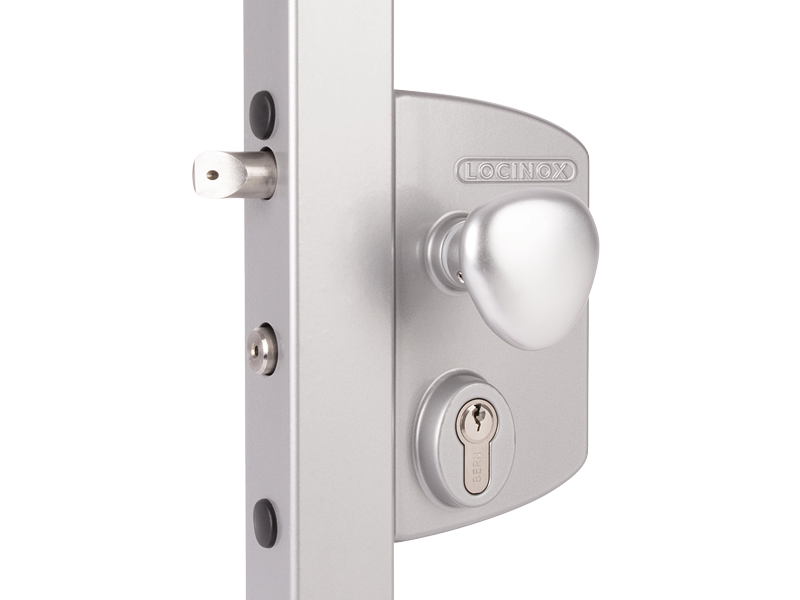

Surface mounted electric gate lock with Fail Open functionality
Surface mounted electric gate lock with Fail Open functionality

Surface mounted electric gate lock with Fail Open functionality - LEKQ30U2LVSZR

Item No. P00015029 - LEKQ30U2LVSZR
Surface mounted electric gate lock with Fail Open functionality for Square 1-1/4" to 2" profiles with 3006R - Aluminum round knob & Cylinder: VSZ - Keyed to differ - Various colors
Product specs
701690059010SILV
P00015029-7016
Surface mounted electric gate lock with Fail Open functionality for Square 1-1/4" to 2" profiles in RAL 7016 with 3006R - Aluminum round knob & Cylinder: VSZ - Keyed to differ
P00015029-9005
Surface mounted electric gate lock with Fail Open functionality for Square 1-1/4" to 2" profiles in RAL 9005 with 3006R - Aluminum round knob & Cylinder: VSZ - Keyed to differ
P00015029-9010
Surface mounted electric gate lock with Fail Open functionality for Square 1-1/4" to 2" profiles in RAL 9010 with 3006R - Aluminum round knob & Cylinder: VSZ - Keyed to differ
P00015029-SILV
Surface mounted electric gate lock with Fail Open functionality for Square 1-1/4" to 2" profiles in silver with 3006R - Aluminum round knob & Cylinder: VSZ - Keyed to differ
Continue shopping
Specifications
Specifications
  • ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test
  • Fail Open: Lock is open when power is interrupted
  • Blocking or releasing of the handles
  • Easy left or right changing of the self-latching daybolt
  • Throw of the dead bolt, 7/8" in 1 turn of the key
  • Key-operated self-latching bolt
  • Continuous adjustment of the daybolt up to 3/4" without removing the lock box
  • 4-hole mounting with two hex head socket screws
  • Interchangeable with all Locinox surface mounted locks
  • Voltage: 12V AC/DC
  • Current: 0.3A
Available in following RAL-colors
Features

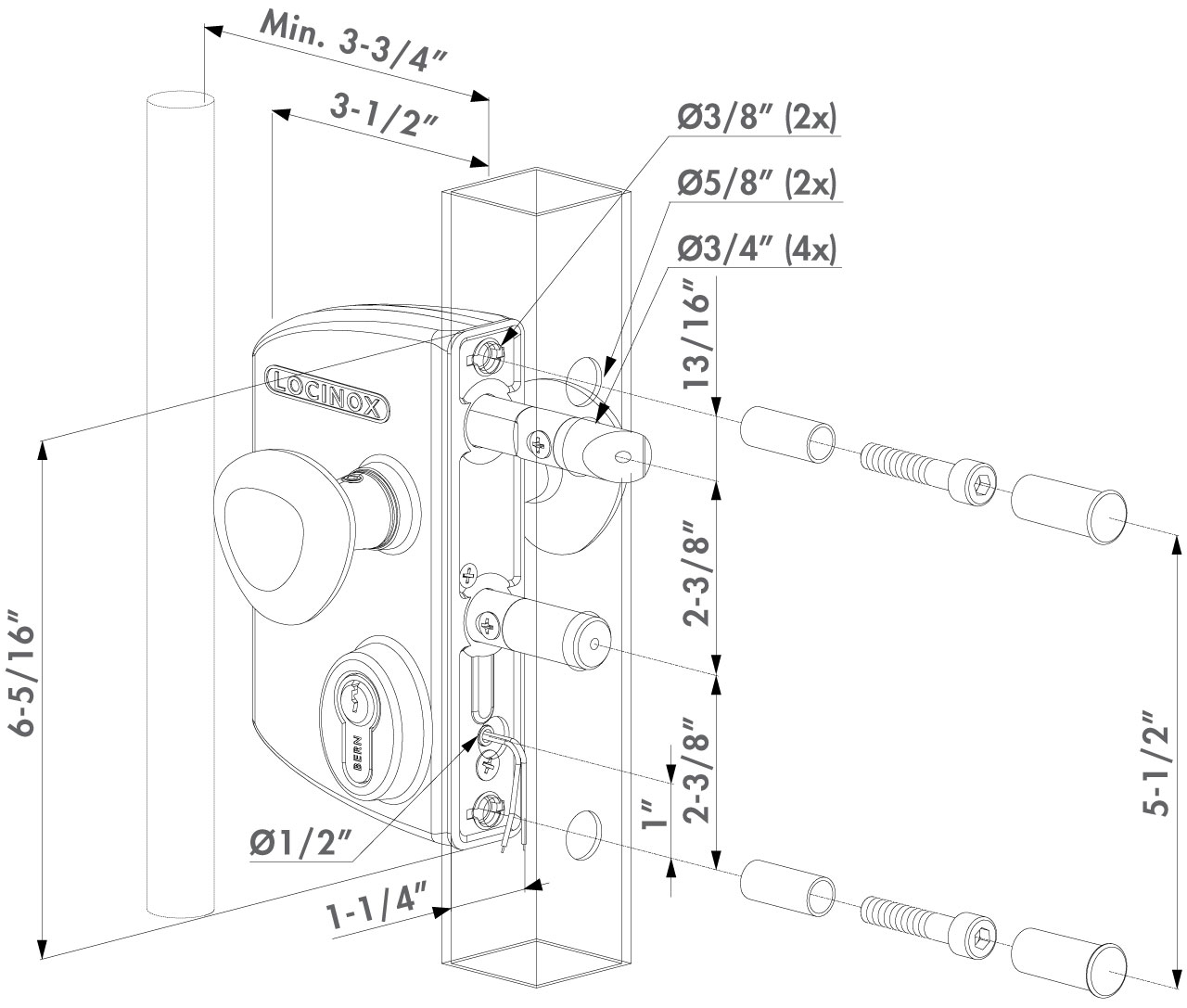

Drawings
