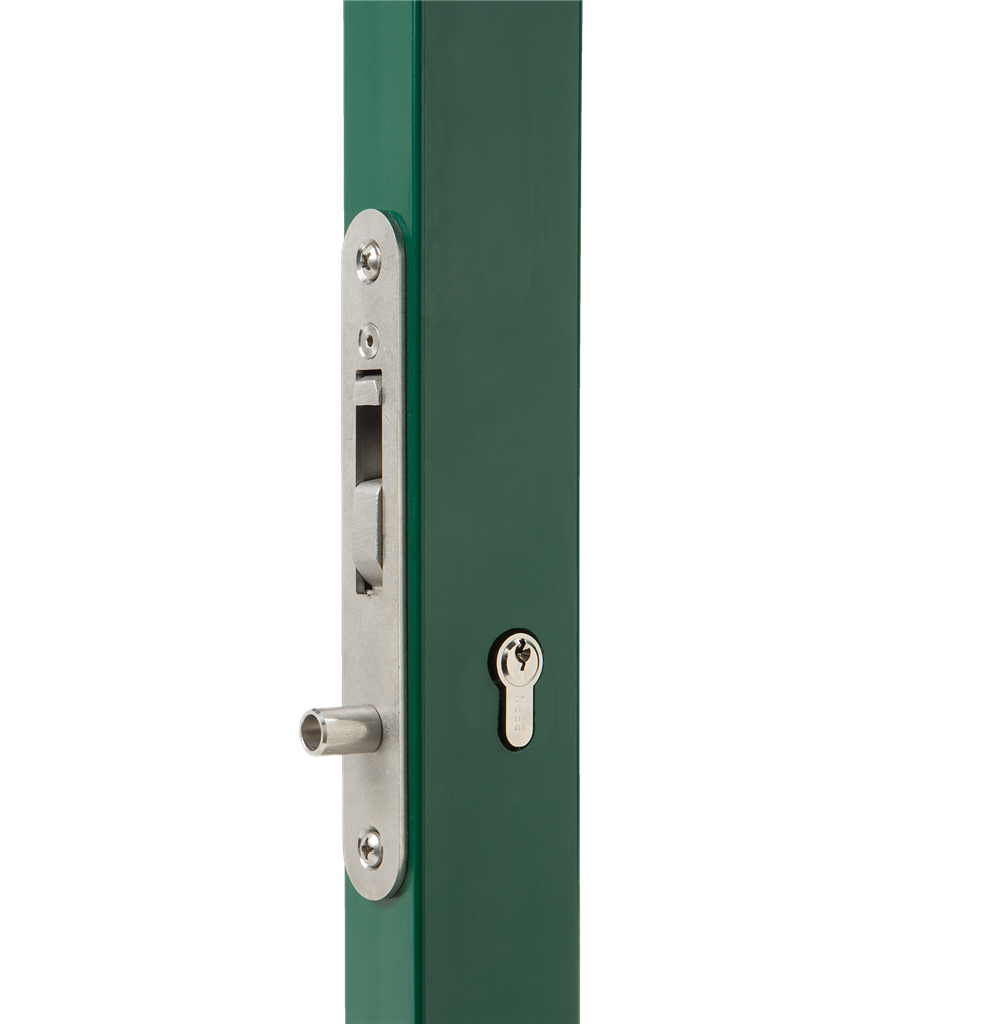

Mortise Lock without handle for sliding and swing gates - H-COMPACT

Item No. P00008039 - H-COMPACT
Mortise lock with 100% stainless steel mechanism. This model is specially designed for mechanical closure of sliding gates and double leaf swinging gates. It can be used for manual locking of automated slide gates. The absence of a handle prevents people from climbing over the fence using the handle as a step. The latch gap required is keep dependent, but the SHKC Hybrid keep requires a 3/8" latch gap.
This product cannot be ordered at the moment.
Specifications
Specifications
  • Insert lock with a backset of 1-3/8"
  • Suitable for swing and sliding gates
  • Mechanism, hook, front plate, chassis and all internal mechanical parts are 100% stainless steel
  • Throw of the hook: 1-1/4"
  • Hook in combination with the keep provides secure anchoring
  • Without latch bolt
  • (Removable) pin prevents lifting the hook from the keep when used in a sliding gate
  • With coverplate for lock mechanism protection against dirt penetration inside the posts
  • Compatible with all Europrofile cylinders
