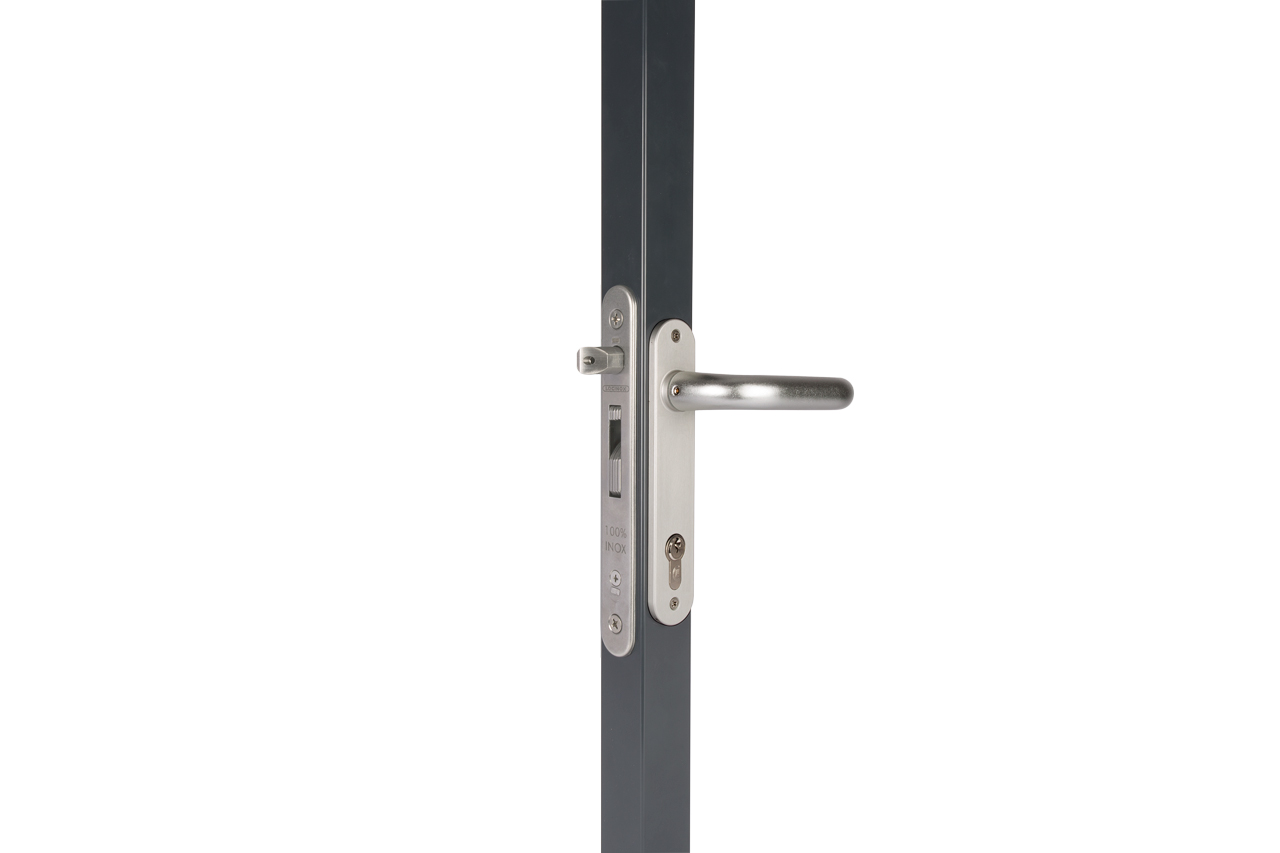

Mortise lock with 3/4" backset for profiles of 1-1/2" or more - FORTYLOCK

Item No. P00007978 - FORTYLOCK

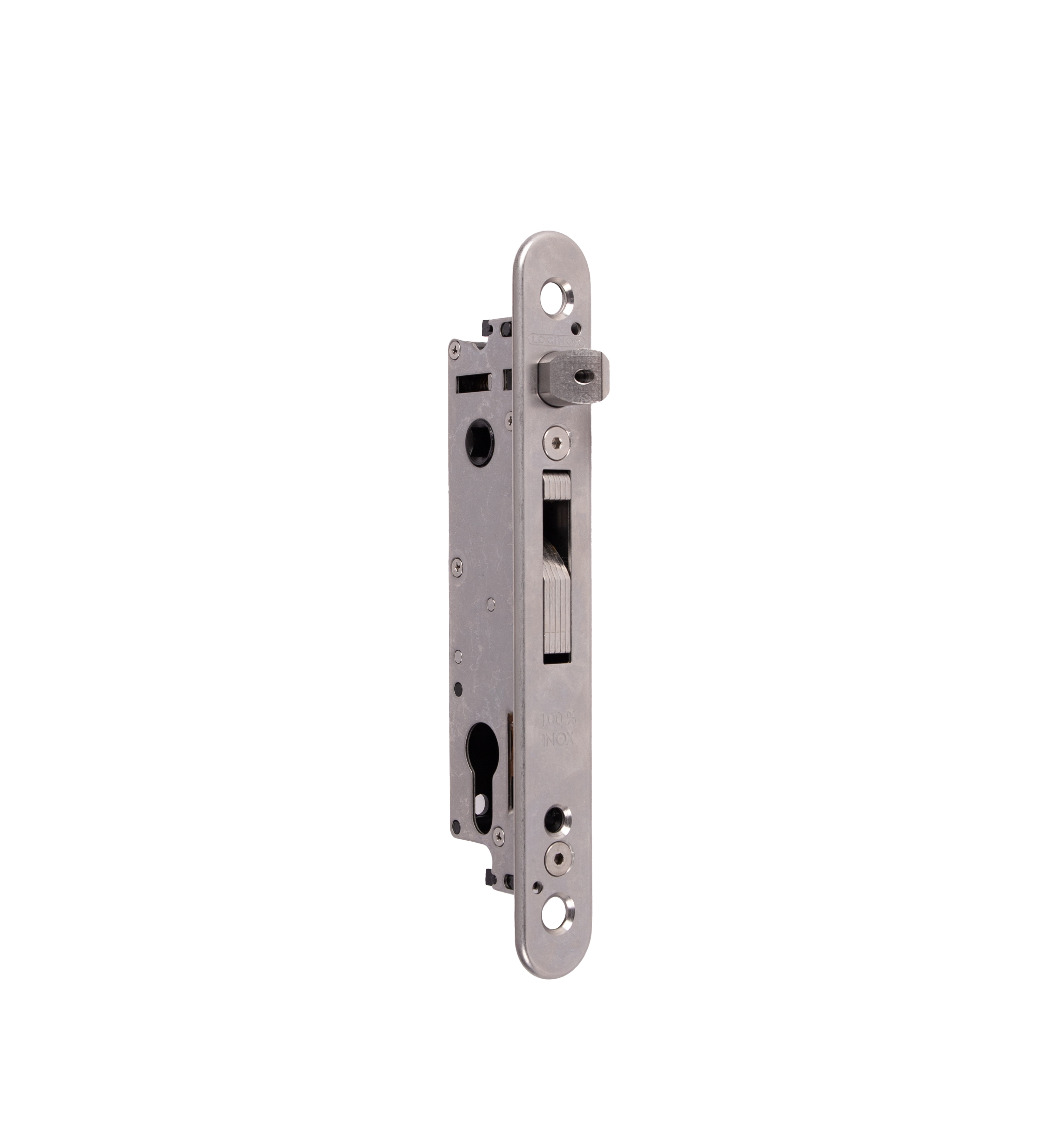

Mortise lock with 100% stainless steel mechanism. The stainless steel adjustable self-latching bolt and hook combined with the right keep guarantee a strong and solid closed gate where the gate wings can not be pulled apart or forced open. The lock can be installed on metal, aluminum and PVC gates. Thanks to the patented "Click-It" system, installing the lock can be done in a matter of seconds.
This product cannot be ordered at the moment.
Specifications
Perfion__BulletsUSA
  • Lock mechanism with cover plate protects against dirt penetration

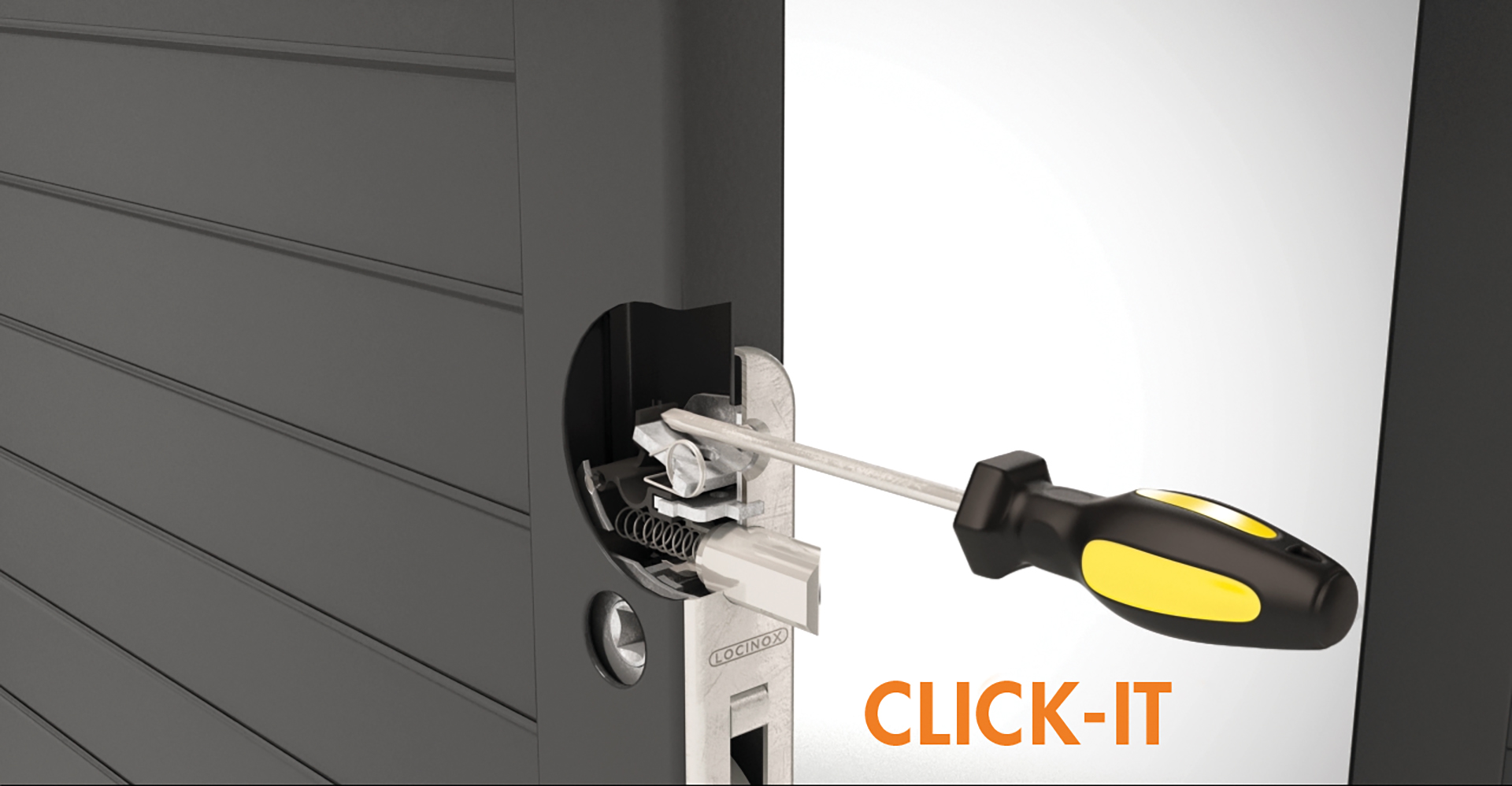

  • Patented "Click-It" system makes thread tapping unnecessary
  • Continuous adjustment of the daybolt up to 3/8" without dismounting the lock box
  • Key-operated self-latching bolt
  • Stainless steel mechanism, hook, front plate and latch bolt
  • Easy left or right changing of the self-latching daybolt
  • Throw of the hook: 13/16"
  • Center-distance cylinder <=> handles = 3-5/8"
  • Optional: cover shield for handle & cylinder holes in aluminum, polyamide or stainless steel
  • Handles to be ordered separately
  • Compatible with all Europrofile cylinders
Features

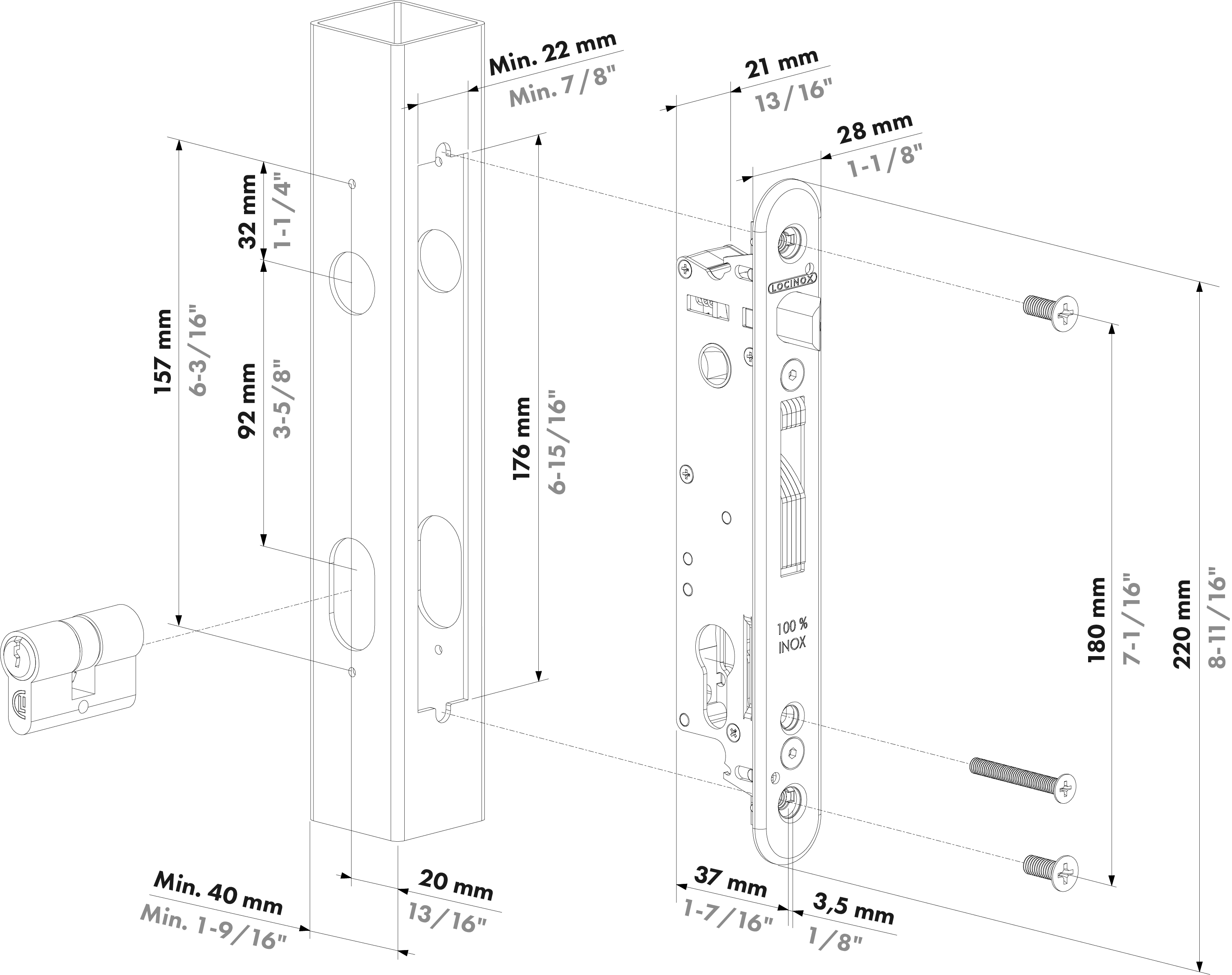

Drawings
