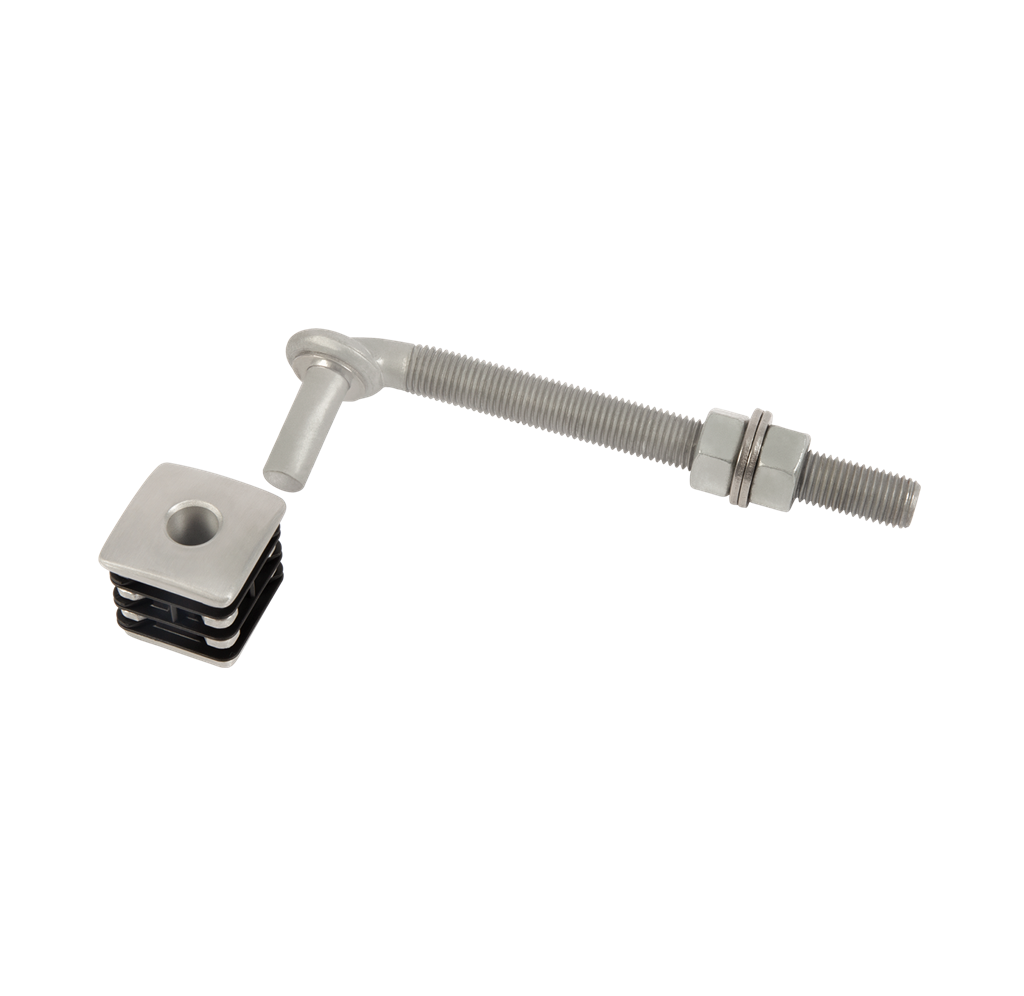

J-Bolt Stainless steel with aluminum plugs - GBM16-DP50-180

Item No. P00011602 - GBM16-DP50-180

J-Bolt Stainless steel with aluminum plugs with Hangerbolt 180 mm for Profile 50 x 50 mm (2 pieces)

Specifications
Drawings
Downloads

Specifications

Specifications

Hinge set with aluminum reinforced hinge post plugs
Hinge axle M16 in hot-dip galvanized steel
Plug available for profile 1-1/2" or 2" square
Length of the threaded J-bolt: 6-1/4" or 7"
Installation: plug slides into gate upright top and bottom

Drawings

Downloads

Product

Download *.JPG
Download CMYK *.TIF
Download RGB *.TIF
Perfion__Image1Image

2D/3D drawings

Download *.TIF
Download *.JPG
Download *.JPG

Hinges specifications
