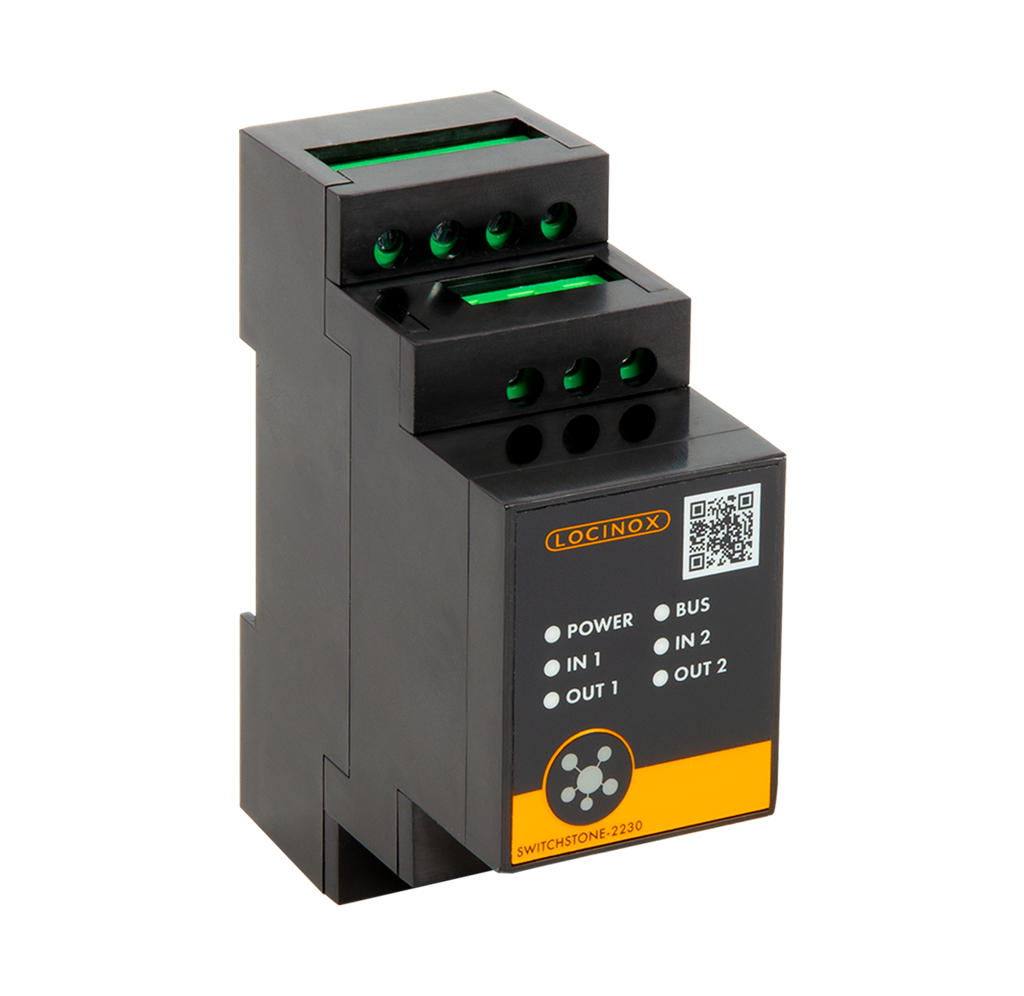

2-channel relay module - SWITCHSTONE-STD-X-230

Item No. P00009532 - SWITCHSTONE-STD-X-230

2-channel relay module with NO/NC contact

Specifications

Includes 2x 250V AC/26V DC relays, each with COM, Fail Open and Fail Close contact
Long range secure 2-wire communication with the SlimStone-X, up to 985' distance
Auto back up functionality
DIN-rail mountable
Tested from -22°F to 185°F
Relay switching duration adjustable between pulse and timer mode (500 ms - 99 s)
To be used exclusively with the 60W power supply
Current: maximum 0.07 A
Consumption: maximum 1.7 W
