180° Spring hinge mounted with self-drilling screws - SERVAL-SD-R

Item No. P00008191 - SERVAL-SD-R

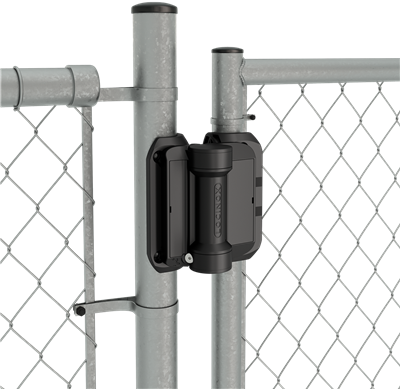

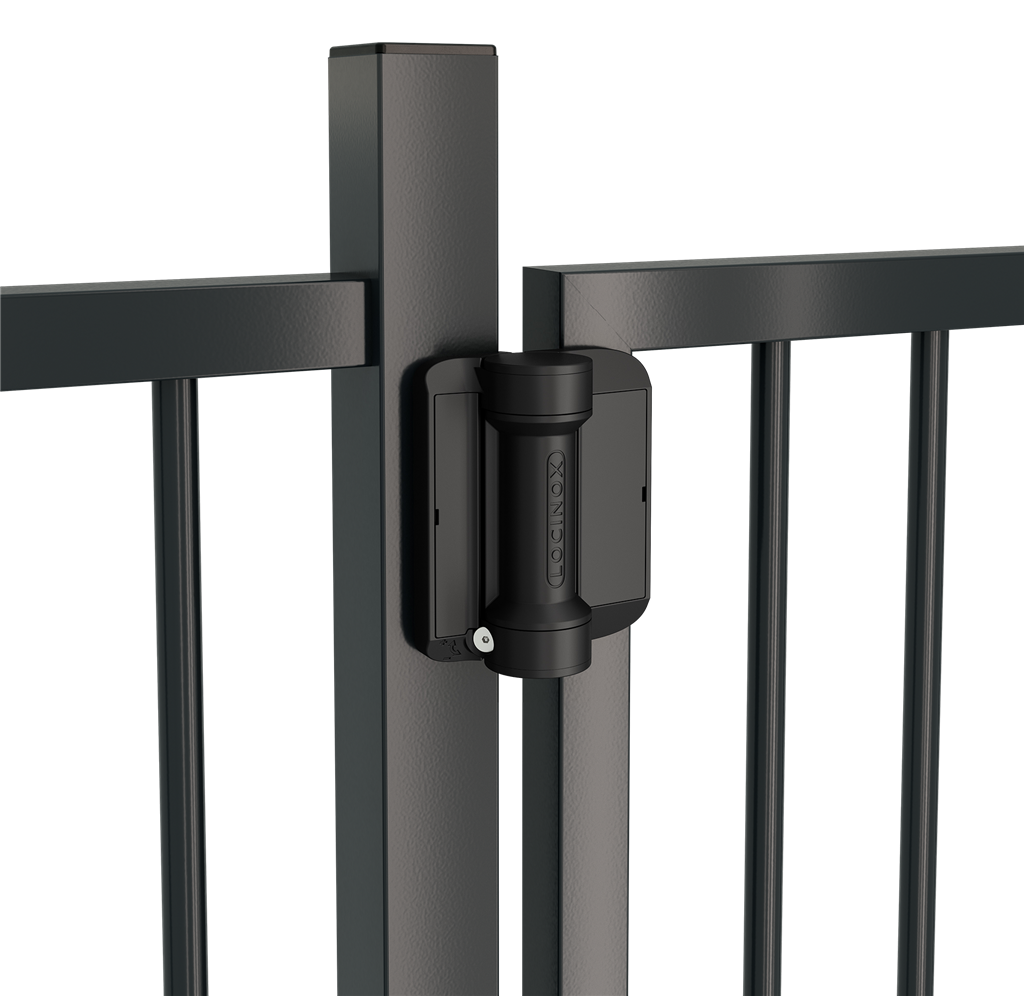

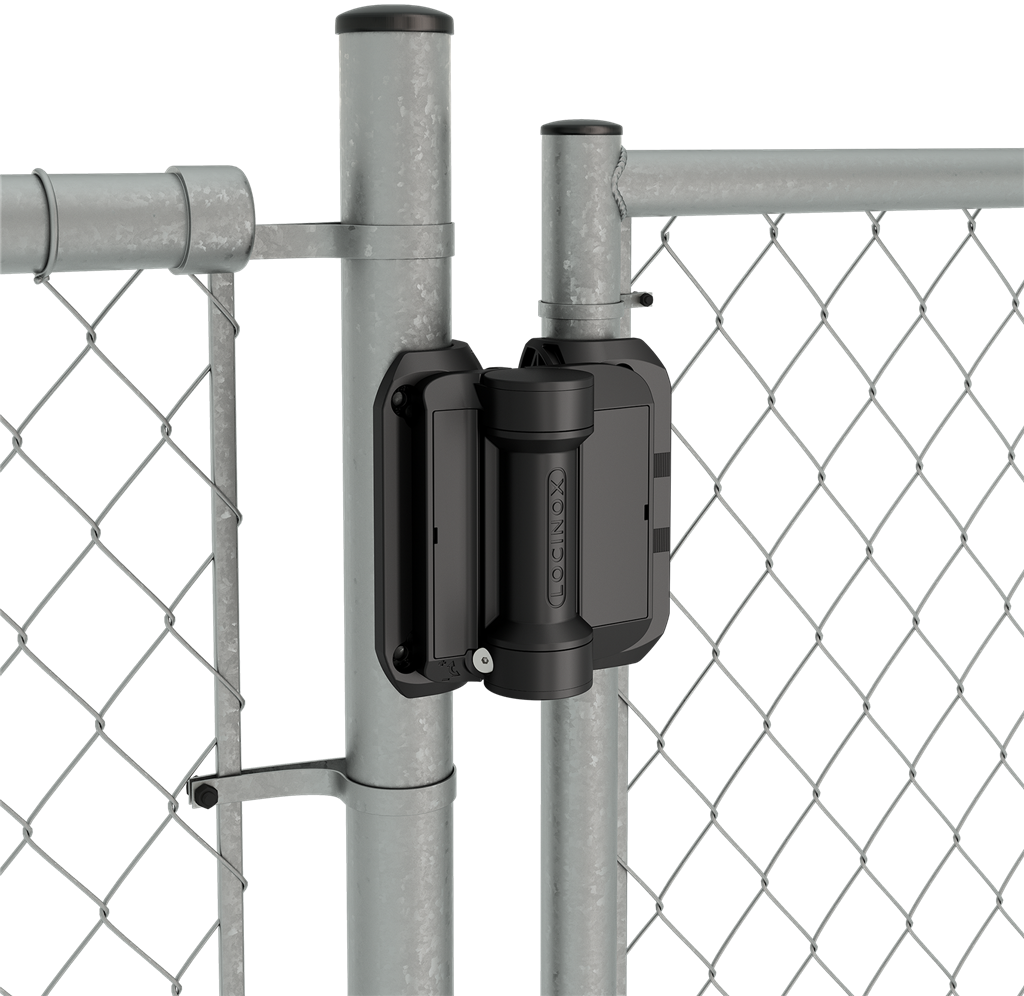

The Serval is a compact spring hinge with force adjustability. The fiberglass reinforced polyamide housing protects the high-tech internal components, allowing for perfect functionality in all weather conditions. Its 13/16" vertical and horizontal adjustability ensures an easy and flexible installation. Firmly fixed with self-drilling screws - no welding required. Suitable for installation on square and round frames.
Product specs
This product cannot be ordered at the moment.
Specifications
Specifications
  • 180° spring hinge with force adjustability
  • Fiberglass reinforced polyamide housing
  • For left and right turning gates
  • Fast and easy fixing with self-drilling screws
  • Force adjustability from 2 up to 7 Nm (at closed position)
  • Easy to open: Max. 10 Nm
  • 13/16" horizontal and vertical adjustability
  • Use of NOSTEP anti-climb device is recommended
