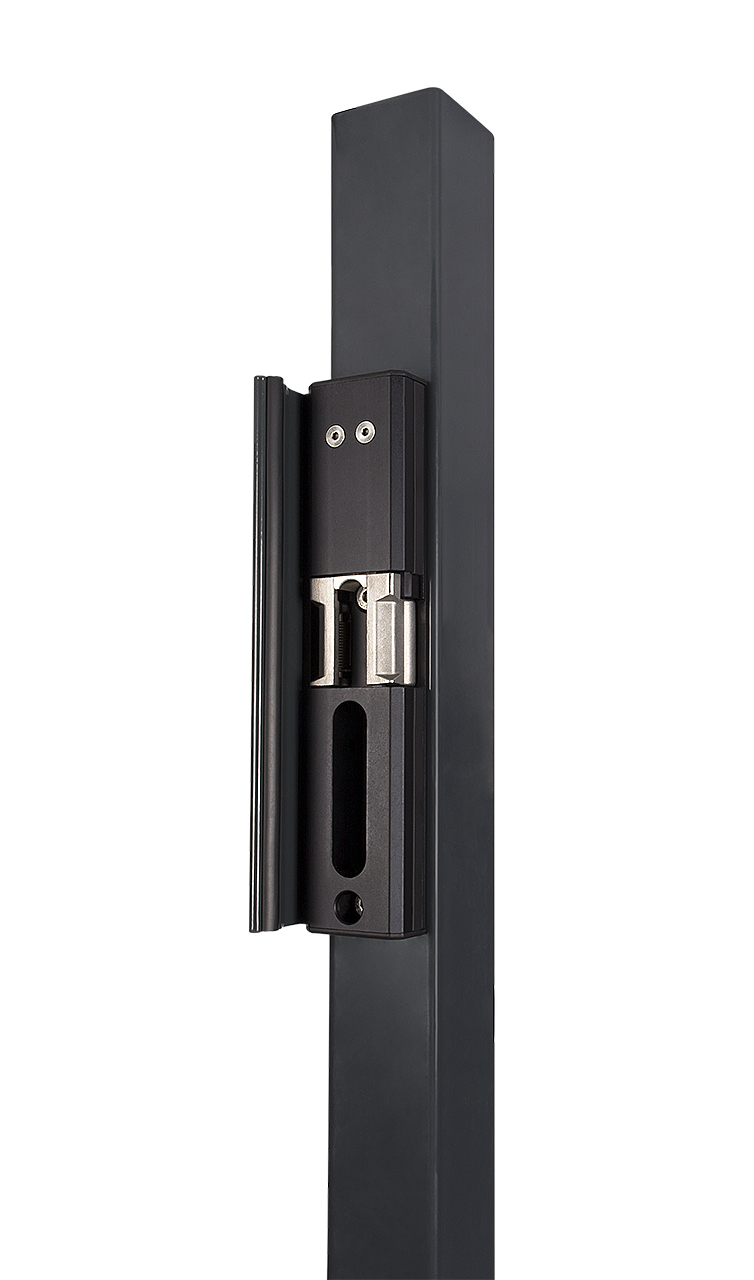

Surface mounted electric strike

Item No. MODULEC-SA-
Electric Strike for surface mounted locks. Fast and easy installation thanks to the Quick-Fix. Easily interchangeable with the SA keep. Can be connected to both 12V - 24V and AC/DC. Modulec-SA is available in two versions: E (Emissa - Fail Close) and R (Ruptura - Fail Open).
Print preview
This product cannot be ordered at the moment.
3 product(s) found
Sort by:
Surface mounted electric strike
Item No. MODULEC-SA-9005-E
Surface mounted electric strike in RAL 9005 - (Emissa - Fail close)
Surface mounted electric strike
Item No. MODULEC-SA-9005-R
Surface mounted electric strike in RAL 9005 - (Ruptura - Fail open)
Surface mounted electric strike
Item No. MODULEC-SA-ALUM-E
Surface mounted electric strike in uncoated aluminium - (Emissa - Fail close)
Specifications
Specifications
  • Tested up to 500 000 movements
  • Fast and easy fixation with Quick-Fix bolts
  • 660 lbs. holding force on the latch bolt
  • Same drilling pattern as SA, SH and SM keeps
  • Easy left or right hand changing
  • Corrosion resistant: black anodized aluminum housing
  • Adjustable for gate profiles: 1-9/16" - 2-3/8" depth
  • Voltage: 12V-24V AC/DC
  • Consumption: 12V - 1,25A / 24V - 0,62A
  • Power: 15W
Available in following RAL-colors
