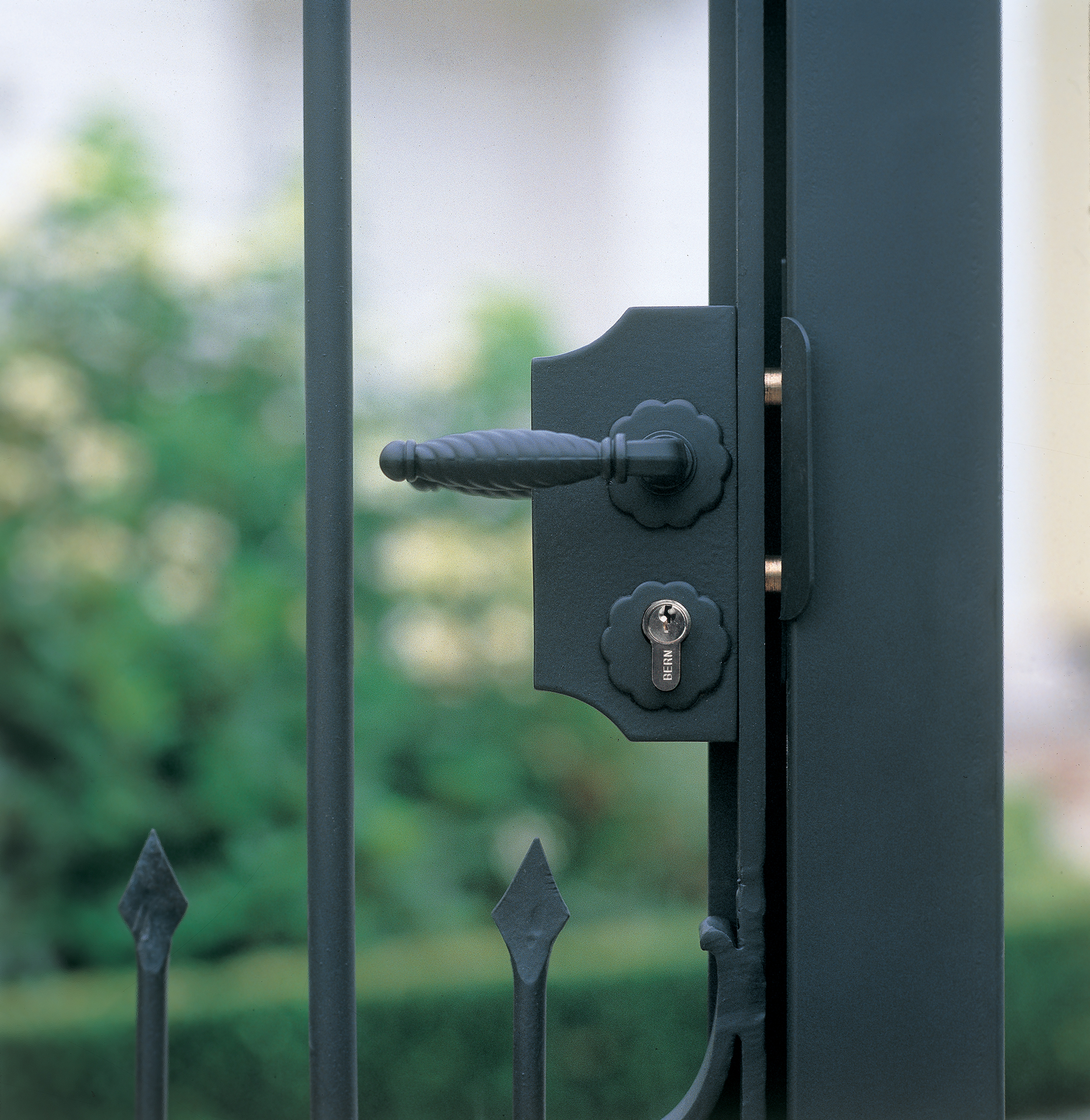

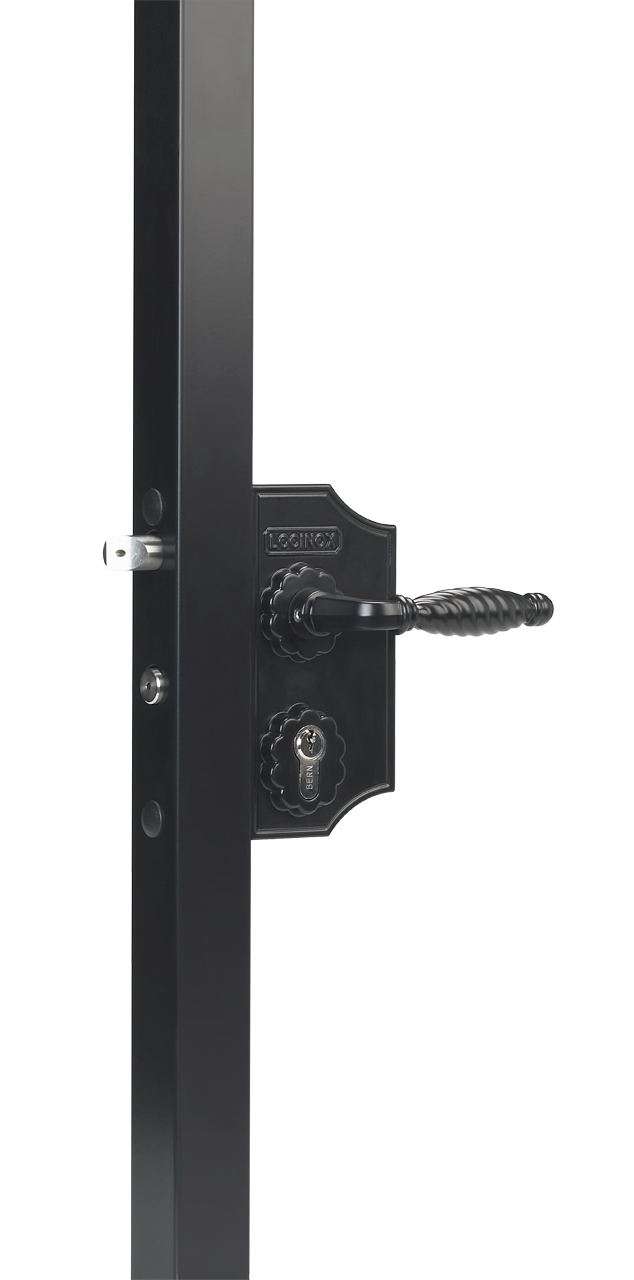

Small surface mounted ornamental gate lock

Item No. LAKYF2
Ornamental lock with aluminum housing and stainless steel mechanism. We recommend this lock as the standard for your ornamental gates as it only requires a 3-3/8" spacing to the first picket and will fit nicely into most gates. The latch and dead bolt have 3/8" continuous adjustment to allow perfect latching / locking of the mechanism. A stainless steel throw of 7/8" guarantees secure locking. Ships standard with the black zamac ornamental handle pair. The latch gap required is keep dependent, but the standard and security keeps require a 1-1/4" latch gap.
Print preview
This product cannot be ordered at the moment.
5 product(s) found
Sort by:
Small surface mounted ornamental gate lock
Item No. LAKY2020F2L9005VCAFA
Small surface mounted ornamental gate lock for Square 7/8" to 1-1/4" profiles in RAL 9005 with 3006FA - Zamac handle pair & Cylinder: VCA - Keyed to differ
Small surface mounted ornamental gate lock
Item No. LAKY3030F2L9005VCAFA
Small surface mounted ornamental gate lock for Square 1-1/4" to 1-1/2" profiles in RAL 9005 with 3006FA - Zamac handle pair & Cylinder: VCA - Keyed to differ
Small surface mounted ornamental gate lock
Item No. LAKY4040F2L9005VCAFA
Small surface mounted ornamental gate lock for Square 1-1/2" to 2" profiles in RAL 9005 with 3006FA - Zamac handle pair & Cylinder: VCA - Keyed to differ
Small surface mounted ornamental gate lock
Item No. LAKY5050F2L9005VCAFA
Small surface mounted ornamental gate lock for Square 2" to 2-3/8" profiles in RAL 9005 with 3006FA - Zamac handle pair & Cylinder: VCA - Keyed to differ
Small surface mounted ornamental gate lock
Item No. LAPY1010F2L9005VCAFA
Small surface mounted ornamental gate lock for flat 3/8" to 7/8" profiles in RAL 9005 with 3006FA - Zamac handle pair & Cylinder: VCA - Keyed to differ
Specifications
Specifications
  • ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test
  • Easy left or right changing of the self-latching daybolt
  • Throw of the dead bolt, 7/8" in 1 turn of the key
  • Adjustment of the bolts up to 3/8" continuous without removing the lock
  • Key-operated self-latching bolt
  • 4-hole mounting with two hex head socket screws
  • Center distance bolts: 2-3/8"
Available in following RAL-colors
Features

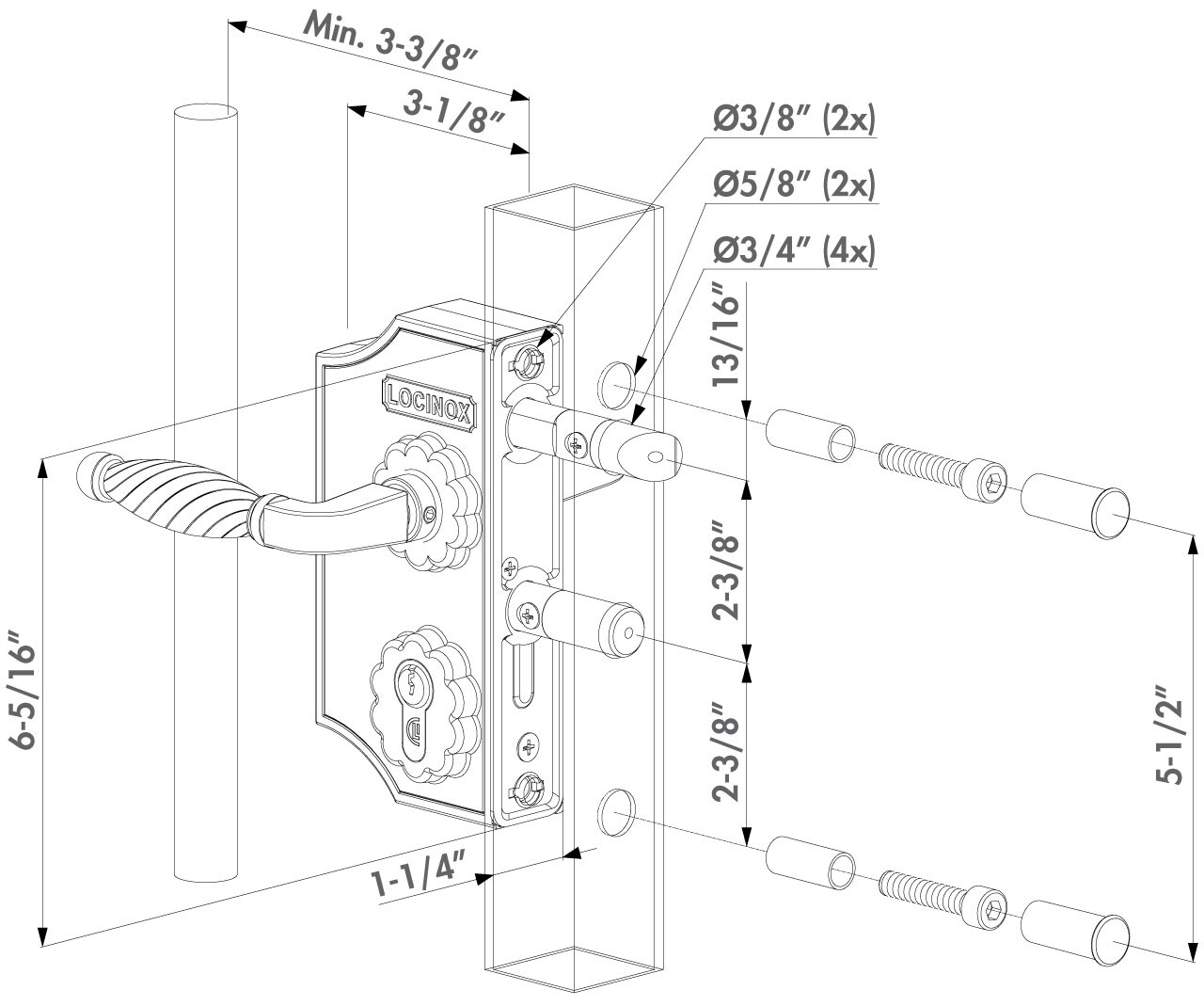

Drawings
