Spring hinge for garden gates

Item No. SWING40-

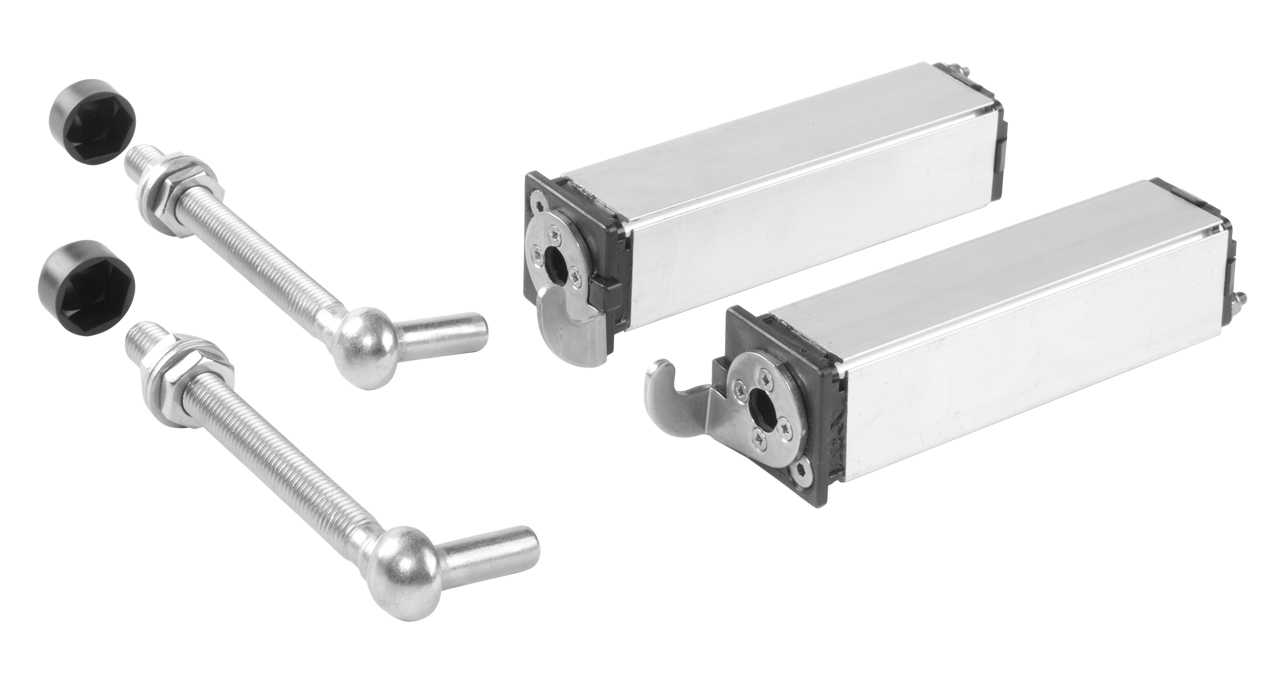

Adjustable spring hinges for garden and walk gates. The set can be fitted inside 1-1/2", 16 Ga tubing. The SWING can easily be adjusted in strength from outside by means of an Allen key.

Print preview

2 product(s) found

Spring hinge for garden gates

Item No. SWING40-130

Spring hinge for garden gates with Hangerbolt 130 mm for Profile 40 x 40 mm

Spring hinge for garden gates

Item No. SWING40-150

Spring hinge for garden gates with Hangerbolt 150 mm for Profile 40 x 40 mm

Specifications
Drawings
Installation Movies
Downloads

Specifications

Specifications	One for the top, one for the bottom Installation: slides into top and bottom of gate frame Only for gate frames 1-1/2" sq, 16 & 14 gauge Reversible: left or right hand Adjustable spring tension using 1/8" allen wrench Maximum gate width: 51" Maximum weight: 165 lbs Maximum profile thickness: 5/64"
Features
