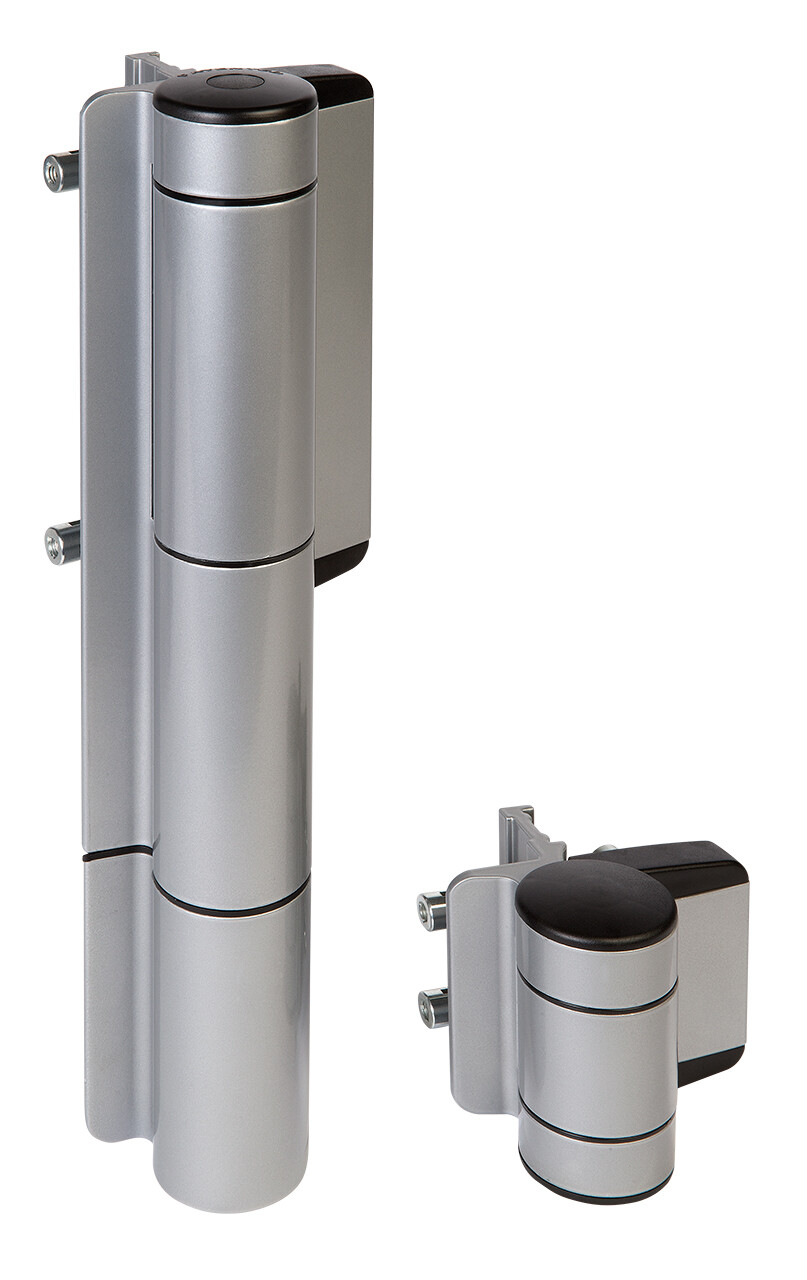

Heavy duty 180° hydraulic gate closer and hinge for gates up to 330 lbs

Heavy duty 180° hydraulic gate closer and hinge for gates up to 330 lbs

Item No. MAMMOTH180-

Sleek and powerful self-closing hinge for 180° gate situations. The Mammoth is perfectly fit for gates up to 330 lbs. It is equipped with a double bearing for exceptional functionality. An Active Thermal System guarantees a constant closing speed, unaffected by weather conditions. The Dino hinge is included.

Print preview

2 product(s) found

Heavy duty 180° hydraulic gate closer and hinge for gates up to 330 lbs

Item No. MAMMOTH180-9005

Heavy duty 180° hydraulic gate closer and hinge for gates up to 330 lbs in RAL 9005

Heavy duty 180° hydraulic gate closer and hinge for gates up to 330 lbs

Item No. MAMMOTH180-ZILV

Heavy duty 180° hydraulic gate closer and hinge for gates up to 330 lbs in Silver

Specifications

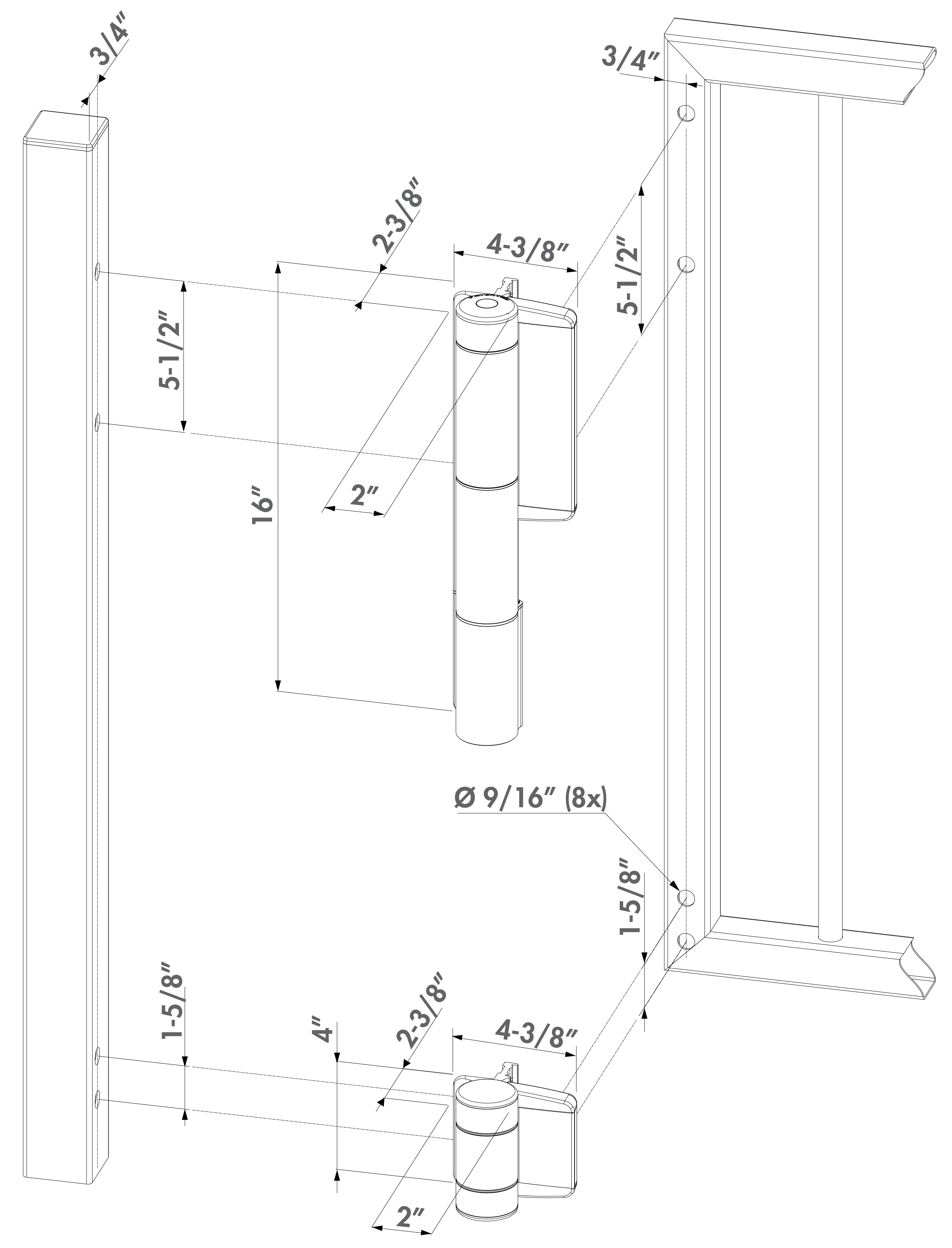

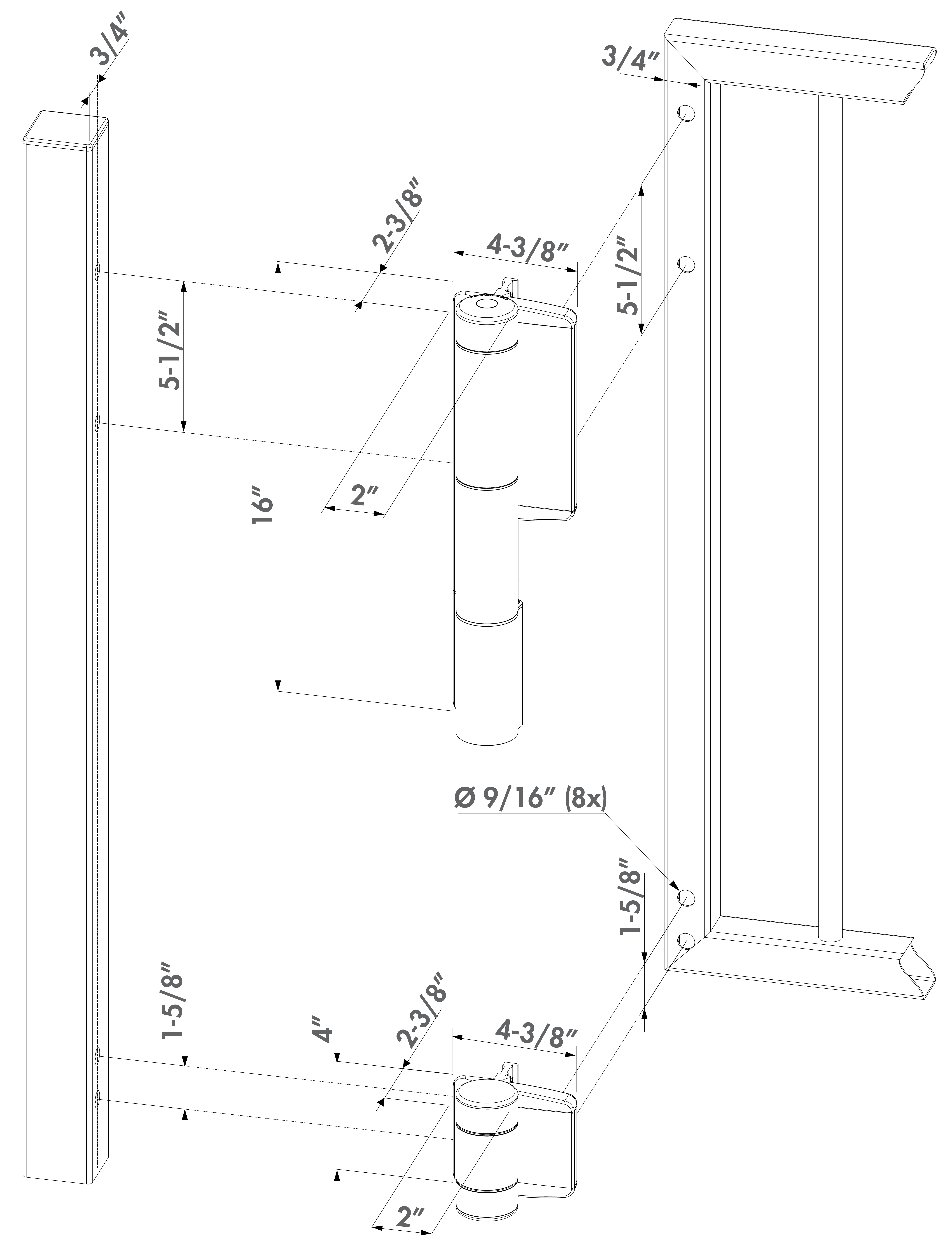

Drawings
Installation Movies
Downloads

Specifications

Specifications	180° self-closing double bearing hinge with adjustable closing speed and final snap Robust yet stylish design with high quality components Weatherproof aluminum housing designed for exterior use Consistent closing speed thanks to patented hydraulic damping ADA compliant (< 5 lbs; max 16 Nm) from gate widths of 3ft. or more Vandal and tamper proof For left and right opening gates Fast and easy installation with Quick-Fix Installation gap 9/16 min up to 1-3/8" max (ornamental); 9/16" adjustability in height
Available in following RAL-colors
Features
